SAP ABAP Table BAD_SRV_OSSET_MESS (Messaging Structure SRV_OSSET)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-BTX-BF-IF (Application Component) R/3 Interface for Business Transactions
⤷ CRM_DATAEXCHANGE_BTX (Package) One Order: MBDoc, Validation, Data Exchange R/3 Sales
⤷ CRM-BTX-BF-IF (Application Component) R/3 Interface for Business Transactions
⤷ CRM_DATAEXCHANGE_BTX (Package) One Order: MBDoc, Validation, Data Exchange R/3 Sales
Basic Data
Table Category | INTTAB | Structure |

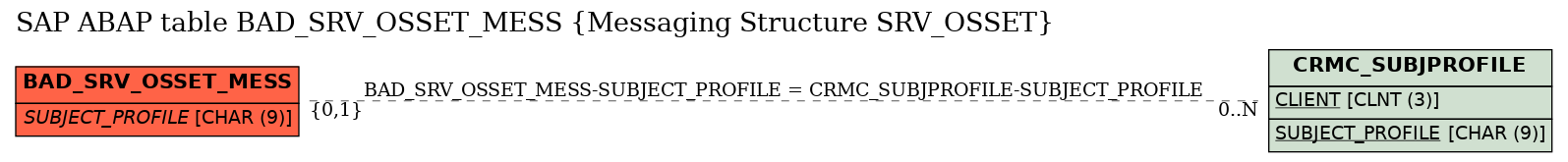

Structure | BAD_SRV_OSSET_MESS | Table Relationship Diagram |
Short Description | Messaging Structure SRV_OSSET |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | .INCLUDE | 0 | 0 | Common structure for all segment structures | |||||
2 | TR_STATUS | CHAR | 4 | 0 | |||||
3 | BEF_IMG | INT1 | 3 | 0 | |||||
4 | TASK | INT1 | 3 | 0 | |||||
5 | SENDBITS | RAW | 32 | 0 | |||||
6 | .INCLUDE | 0 | 0 | BAD - Subject - Reference object Set | |||||
7 | CLIENT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
8 | GUID | CRMT_OBJECT_GUID | SYSUUID | RAW | 16 | 0 | GUID of a CRM Order Object | ||
9 | ORDERADM_H_GUID | CRMT_OBJECT_GUID | SYSUUID | RAW | 16 | 0 | GUID of a CRM Order Object | ||
10 | REF_GUID | CRMT_OBJECT_GUID | SYSUUID | RAW | 16 | 0 | GUID of a CRM Order Object | ||
11 | REF_KIND | CRMT_OBJECT_KIND | CRM_OBJECTKIND | CHAR | 1 | 0 | Object Type | ||
12 | .INCLUDE | 0 | 0 | CRM Service: Structure Object-Subject Internal Fields | |||||
13 | GUID_SET | CRMT_OBJECT_GUID | SYSUUID | RAW | 16 | 0 | GUID of a CRM Order Object | ||
14 | .INCLUDE | 0 | 0 | CRM Service : Structure Object-Subject External Fields | |||||
15 | SUBJECT_PROFILE | CRMT_SUBJECT_PROFILE | CRM_SUBJECT_PROFILE | CHAR | 9 | 0 | Subject Profile | CRMC_SUBJPROFILE | |
16 | PROFILE_TYPE | CRMT_SUBJECT_PROFILE_TYPE | CRM_SUBJECT_PROFILE_TYPE | CHAR | 2 | 0 | Subject Profile Category |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | BAD_SRV_OSSET_MESS | SUBJECT_PROFILE | CRMC_SUBJPROFILE | SUBJECT_PROFILE | REF | C | CN |
History
Last changed by/on | SAP | 20010220 |
SAP Release Created in | 30A |
