SAP ABAP Table BAD_SHIPPING_MESS (Messaging Structure SHIPPING)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-IF (Application Component) R/3 Interface for Business Transactions
     ⤷ CRM_DATAEXCHANGE_BTX (Package) One Order: MBDoc, Validation, Data Exchange R/3 Sales

Basic Data

Table Category	INTTAB	Structure
Structure	BAD_SHIPPING_MESS	Table Relationship Diagram
Short Description	Messaging Structure SHIPPING

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Common structure for all segment structures
2	TR_STATUS	☐			CHAR	4	0
3	BEF_IMG	☐			INT1	3	0
4	TASK	☐			INT1	3	0
5	SENDBITS	☐			RAW	32	0
6	.INCLUDE	☐				0	0	BAD - Shipping set
7	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
8	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
9	ORDERADM_H_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
10	.INCLUDE	☐				0	0	Shipping Set: Stucture with External Fields
11	INCOTERMS1	☐	CRMT_INCOTERMS1	CRM_INCOTERMS1	CHAR	3	0	Incoterms (Part 1)	CRMC_INCOTERM
12	INCOTERMS2	☐	CRMT_INCOTERMS2	CRM_INCOTERMS2	CHAR	28	0	Incoterms (Part 2)
13	SHIP_COND	☐	CRMT_SHIP_COND	CRM_SHIP_COND	CHAR	2	0	Shipping Conditions	CRMC_SHIP_COND
14	DELI_UNLIM_TOL	☐	CRMT_DELI_UNLIM_TOL	CRM_BOOLEAN	CHAR	1	0	Indicator: Unlimited Overdelivery Allowed
15	OVER_DLV_TOL	☐	CRMT_OVER_DLV_TOL	PRZ21	DEC	3	1	Overdelivery Tolerance Limit
16	UNDER_DLV_TOL	☐	CRMT_UNDER_DLV_TOL	PRZ21	DEC	3	1	Underdelivery Tolerance Limit
17	DLV_PRIO	☐	CRMT_DLV_PRIO	CRM_DLV_PRIO	NUMC	2	0	Delivery Priority	CRMC_DLV_PRIO
18	ORDERCOMBIND	☐	CRMT_ORDERCOMBIND	CRM_BOOLEAN	CHAR	1	0	Indicator: Order Combination
19	PART_DLV	☐	CRMT_PART_DLV	CRM_PART_DLV	CHAR	1	0	Delivery Control
20	DLV_GROUP	☐	CRMT_DLV_GROUP	CRMT_DLV_GROUP	NUMC	3	0	Delivery Group (Items are Delivered Together)
21	DELIVERY_BLOCK	☐	CRMT_BUS_DEL_BLOCK_REASON	CRMT_BUS_DEL_BLOCK_REASON	CHAR	2	0	Business Partner (CRM): Delivery Block Reason	*
22	PART_DLV_ITM	☐	CRMT_PART_DLV_ITM	CRM_PART_DLV_ITM	CHAR	1	0	Delivery Control (Item)
23	TRANS_MOT	☐	CRMT_TRANS_MOT	CRM_TRANS_MOT	CHAR	2	0	Mode of Transport	*
24	GEOROUTE	☐	CRMT_GEOROUTE	CRM_GEOROUTE	CHAR	10	0	Route
25	DIRECT_SHIP	☐	CRMT_DIRECT_SHIP	FLAG	CHAR	1	0	Direct Delivery Without Consolidation
26	TRANS_MEANS	☐	CRMT_TRANS_MEANS	CRM_TRANS_MEANS	CHAR	10	0	Means of Transport (from SCM System)
27	INV_BEFORE_GI	☐	CRMT_BEFORE_LOADING	CRM_BEFORE_LOADING	CHAR	1	0	Invoice Before Goods Issue (IBGI)
28	MAX_PL_DLV	☐	CRMT_MAX_PL_DLV		DEC	1	0	Maximum number of partial deliveries allowed per item
29	HU_EXID	☐	CRMT_EX_HANDLING_UNIT	CRM_EX_HU	CHAR	20	0	External Handling Unit ID
30	PACK_MAT	☐	CRMT_PACK_MAT	MATNR	CHAR	18	0	Packaging Material
31	.INCLUDE	☐				0	0	EEW Extension
32	SHIPPING_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
33	.INCLUDE	☐				0	0
34	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
35	REF_KIND	☐	CRMT_OBJECT_KIND	CRM_OBJECTKIND	CHAR	1	0	Object Type

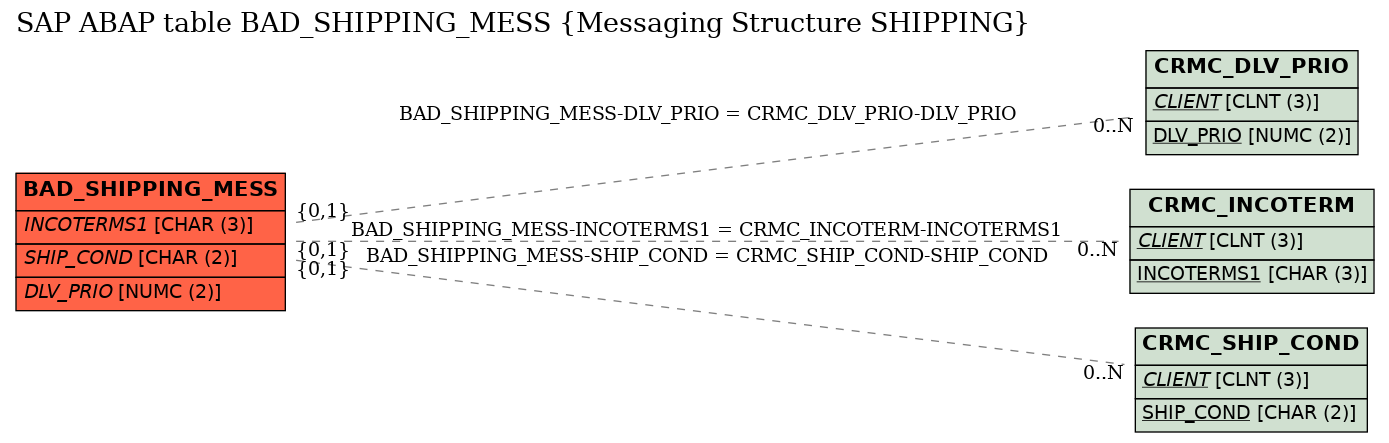

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAD_SHIPPING_MESS	DLV_PRIO	CRMC_DLV_PRIO	DLV_PRIO	REF	C	CN
2	BAD_SHIPPING_MESS	INCOTERMS1	CRMC_INCOTERM	INCOTERMS1	REF	C	CN
3	BAD_SHIPPING_MESS	SHIP_COND	CRMC_SHIP_COND	SHIP_COND	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	30A
