SAP ABAP Table BAD_APPOINTMENT_MESS (Messaging Structure APPOINTMENT)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-IF (Application Component) R/3 Interface for Business Transactions
     ⤷ CRM_DATAEXCHANGE_BTX (Package) One Order: MBDoc, Validation, Data Exchange R/3 Sales

Basic Data

Table Category	INTTAB	Structure

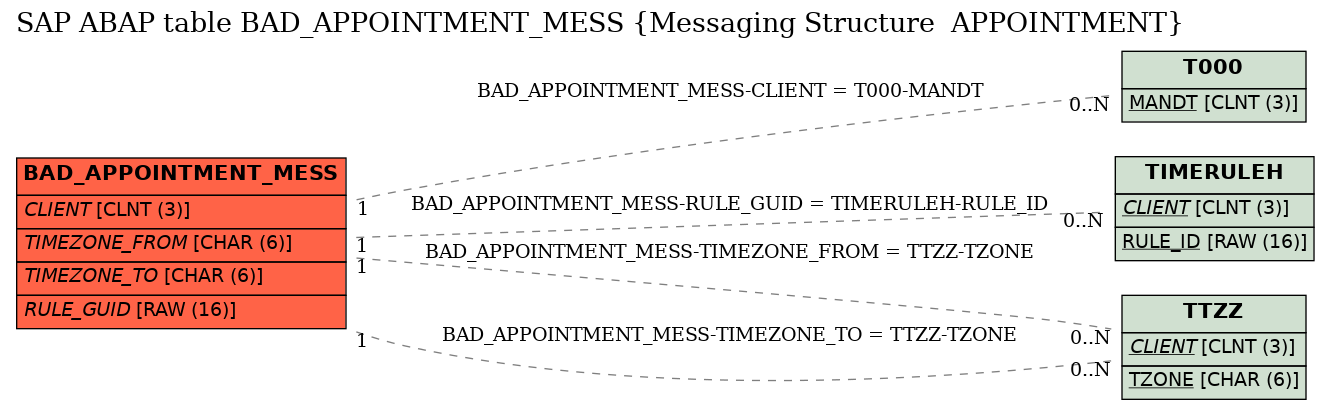

Structure	BAD_APPOINTMENT_MESS	Table Relationship Diagram
Short Description	Messaging Structure APPOINTMENT

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Common structure for all segment structures
2	TR_STATUS	☐			CHAR	4	0
3	BEF_IMG	☐			INT1	3	0
4	TASK	☐			INT1	3	0
5	SENDBITS	☐			RAW	32	0
6	.INCLUDE	☐				0	0	BAD - Appointment Set
7	.INCLUDE	☐				0	0	Internal identification for a date
8	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
9	APPT_GUID	☐	SC_APTGUID	SYSUUID	RAW	16	0	GUID of Appointment
10	ORDERADM_H_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
11	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
12	REF_KIND	☐	CRMT_OBJECT_KIND	CRM_OBJECTKIND	CHAR	1	0	Object Type
13	.INCLUDE	☐				0	0	Externally influential details for a date
14	.INCLUDE	☐				0	0	Shared external attributes in date processing
15	.INCLUDE	☐				0	0	Shared external core attributues in date processing
16	APPT_TYPE	☐	CRMT_APPTYPE	SC_APPTTYP	CHAR	12	0	Technical Name for Date Type	*
17	TIMESTAMP_FROM	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
18	TIMEZONE_FROM	☐	CRMT_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone for a Start Time	TTZZ
19	TIMESTAMP_TO	☐	CRMT_DATE_TIMESTAMP_TO	BCOS_TSTMP	DEC	15	0	Time stamp (Date and Time) until a Date/Duration
20	TIMEZONE_TO	☐	CRMT_TIMEZONE_TO	TZNZONE	CHAR	6	0	Time Zone for End Time	TTZZ
21	RULE_ID	☐	SC_RULEID	TEXT25	CHAR	25	0	Internal Identification of Rules of Periodic Appointments
22	.INCLUDE	☐				0	0	External attribute in appointment class CL_APPOINTMENT_FULL
23	SHOW_LOCAL	☐	SC_SHOWLOC	FLAG	CHAR	1	0	Display appointment in the local time of the appointment
24	DOMINANT	☐	CRMT_DATES_DOMINANT	CRM_DATES_DOMINANT	CHAR	1	0	All Day Event
25	.INCLUDE	☐				0	0	Shared external attributes in date processing
26	RULE_GUID	☐	CRMT_DATES_RULE_GUID	TIMERULEID	RAW	16	0	Rule GUID to Calculate a Date	TIMERULEH
27	RULE_NAME	☐	CRMT_DATES_RULE_NAME	TIMENAME	CHAR	12	0	Semantic Name of a Date Rule
28	.INCLUDE	☐				0	0	Durations in date processing
29	DURATION	☐	TIMEDURA	TIMEDURA	DEC	13	0	Numerical Value of Duration
30	TIME_UNIT	☐	TIMEUNITDU	TIMEUNITNA	CHAR	12	0	Default Value for Time Unit	*
31	IS_DURATION	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
32	.INCLUDE	☐				0	0	Link GUID for date set
33	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAD_APPOINTMENT_MESS	CLIENT	T000	MANDT	KEY	1	CN
2	BAD_APPOINTMENT_MESS	RULE_GUID	TIMERULEH	RULE_ID	KEY	1	CN
3	BAD_APPOINTMENT_MESS	TIMEZONE_FROM	TTZZ	TZONE	KEY	1	CN
4	BAD_APPOINTMENT_MESS	TIMEZONE_TO	TTZZ	TZONE	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	30A
