SAP ABAP Table BAD_ACTJRNL_TEXT_MESS (Message Structure: Report Definition Texts)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-IF (Application Component) R/3 Interface for Business Transactions
     ⤷ CRM_DATAEXCHANGE_BTX_ACT (Package) Data Exchange: Activities

Basic Data

Table Category	INTTAB	Structure

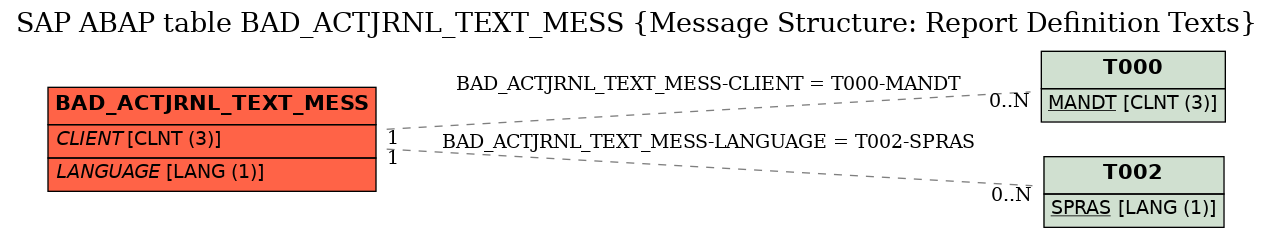

Structure	BAD_ACTJRNL_TEXT_MESS	Table Relationship Diagram
Short Description	Message Structure: Report Definition Texts

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Common structure for all segment structures
2	TR_STATUS	☐			CHAR	4	0
3	BEF_IMG	☐			INT1	3	0
4	TASK	☐			INT1	3	0
5	SENDBITS	☐			RAW	32	0
6	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
7	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
8	JOURNAL_GUID	☐	CRMT_ACT_JOURNAL_GUID	SYSUUID	RAW	16	0	Activity Reporting: Activity Journal Guid
9	LANGUAGE	☐	CRMT_LANGUAGE	SPRAS	LANG	1	0	Language Key of Description	T002
10	DESCRIPTION	☐	CRMT_ACT_JOURNAL_DESCRIPTION	TEXT50	CHAR	50	0	Activity Reporting: Activity Journal Name

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAD_ACTJRNL_TEXT_MESS	CLIENT	T000	MANDT	KEY	1	CN
2	BAD_ACTJRNL_TEXT_MESS	LANGUAGE	T002	SPRAS	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
