SAP ABAP Table BAD_ACTJRNL_HEADER_MESS (Message Structure: Report Definition Customizing)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-IF (Application Component) R/3 Interface for Business Transactions
     ⤷ CRM_DATAEXCHANGE_BTX_ACT (Package) Data Exchange: Activities

Basic Data

Table Category	INTTAB	Structure

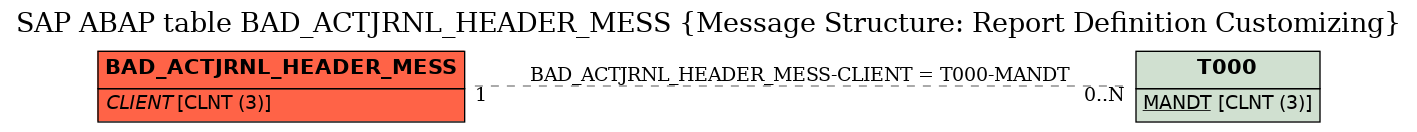

Structure	BAD_ACTJRNL_HEADER_MESS	Table Relationship Diagram
Short Description	Message Structure: Report Definition Customizing

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Common structure for all segment structures
2	TR_STATUS	☐			CHAR	4	0
3	BEF_IMG	☐			INT1	3	0
4	TASK	☐			INT1	3	0
5	SENDBITS	☐			RAW	32	0
6	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
7	JOURNAL_GUID	☐	CRMT_ACT_JOURNAL_GUID	SYSUUID	RAW	16	0	Activity Reporting: Activity Journal Guid
8	.INCLUDE	☐				0	0	Activity: Journal Definition General Attributes
9	DOCTYP	☐	CRMT_ACT_DOCTY	CRM_ACT_DOCTY	CHAR	10	0	Template Type
10	EMPREF	☐	CRMT_ACT_EMPREF	CRM_ACT_EMPREF	CHAR	1	0	Flag empty or prefilled,E=record is header of empty document
11	DOCSTAT	☐	CRMT_ACT_DOCSTA	CRM_ACT_DOCSTA	CHAR	4	0	Activity Reporting: Document Status-optional/mandatory
12	PRDEP	☐	CRMT_ACT_PRDEP	CRM_ACT_TEXT1	CHAR	1	0	Activity Journal Reporting: Product Dependency
13	ALL_PROCESS_TYPE	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
14	DOCVAL	☐	CRMT_ACT_DOCVAL	CRM_ACT_DOCVAL	CHAR	1	0	Documentation validation
15	USELISTING	☐	CRMT_ACT_USELISTING	CRM_ACT_TEXT1	CHAR	1	0	Activity Journals: Use listing for product selection
16	USELISTINGS	☐	CRMT_ACT_USELISTINGS	CRM_ACT_TEXT1	CHAR	1	0	Activity Journals: Use new listing for product selection
17	USEPPR	☐	CRMT_ACT_USEPPR	CRM_ACT_TEXT1	CHAR	1	0	Activity Journals: Use PPR for product selection
18	GETPPRVALUES	☐	CRMT_ACT_PPRDEFAULT	CRM_BOOLEAN	CHAR	1	0	Activity Journals : Get Default Values from PPR
19	FREQUENCY	☐	CRMT_ACT_TMPT_FREQ	CRM_ACT_TMPT_FREQ	CHAR	4	0	Template Frequency	*
20	DOCUSAGE	☐	CHAR3	CHAR3	CHAR	3	0	3-Byte field
21	.INCLUDE	☐				0	0	Activity:Journal Definition Organisation Data
22	SALES_ORG	☐	CRMT_SALES_ORG	HROBJEC_14	CHAR	14	0	Sales Organization ID
23	DIS_CHANNEL	☐	CRMT_DISTRIBUTION_CHANNEL	CRM_DISTRIBUTION_CHANNEL	CHAR	2	0	Distribution Channel	*
24	DIVISION	☐	CRMT_DIVISION	CRM_DIVISION	CHAR	2	0	Division	*
25	.INCLUDE	☐				0	0	Activity:Journal Definition Territory data
26	PATH_GUID	☐	GUID_16	SYSUUID	RAW	16	0	GUID in 'RAW' format
27	PATH_ID	☐	CRMT_TERRITORY_PATH_ID	CRM_TERRITORY_PATH_ID	CHAR	30	0	Territory Hierarchy ID
28	.INCLUDE	☐				0	0	Activity:Journal Definition Validity Criteria
29	DATEB	☐	SC_DATEFRO	DATUM	DATS	8	0	Start Date
30	DATEI	☐	SC_DATETO	DATUM	DATS	8	0	End Date
31	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAD_ACTJRNL_HEADER_MESS	CLIENT	T000	MANDT	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
