SAP ABAP Table AMC_RECEIVER (Table of Registered AMC Receivers)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-CST (Application Component) Client/Server Technology
     ⤷ SSI_MSG (Package) Messaging

Basic Data

Table Category	TRANSP	Transparent table

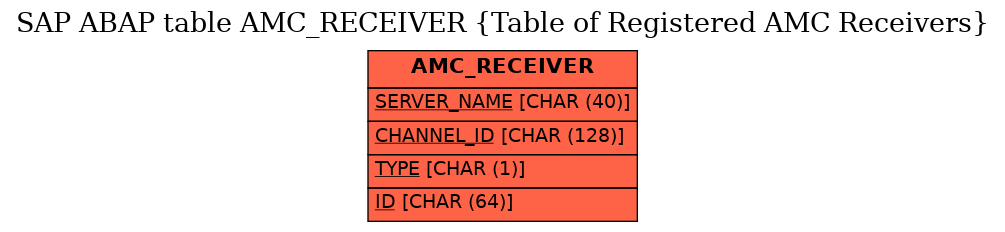

Transparent table	AMC_RECEIVER	Table Relationship Diagram
Short Description	Table of Registered AMC Receivers

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SERVER_NAME	☑	SSI_SERVERNAME_FIX		CHAR	40	0	Name of Application Server
2	CHANNEL_ID	☑	SSI_CHANNEL_ID_FIX		CHAR	128	0	Message Channel ID
3	TYPE	☑	SSI_AMC_ADDRESS_TYPE		CHAR	1	0	Address Type
4	ID	☑	SSI_AMC_ADDRESS_ID_FIX		CHAR	64	0	Address
5	LOGON_HDL	☐	SSI_LOGON_HDL	SSI_INTEGER_TYPE	INT4	10	0	Logon Key
6	LOGON_ID	☐	SSI_LOGON_ID	SSI_INTEGER_TYPE	INT4	10	0	Logon ID
7	SESSION_HDL	☐	SSI_SESSION_HDL	SSI_INTEGER_TYPE	INT4	10	0	Back-End Session Handle
8	INTERNAL_SESSION_HDL	☐	SSI_INTERNAL_SESSION_HDL	SSI_INTEGER_TYPE	INT4	10	0	Internal Session Handle
9	USER_NAME	☐	SSI_USER_NAME	UNAME	CHAR	12	0	User ID
10	TENANT	☐	SSI_TENANT_ID	MANDT	CLNT	3	0	Client Name	*
11	REGISTRATION_TIME	☐	SSI_TIMESTAMP	SSI_ULONG_TYPE	INT4	10	0	Time Stamp (Number of Seconds Since 1.1.1979)
12	CHANNEL_ID_LEN	☐	SSI_COUNTER	SSI_UINTEGER_TYPE	INT4	10	0	Number of Executed Actions
13	MATCH_STRATEGY	☐	SSI_COUNTER	SSI_UINTEGER_TYPE	INT4	10	0	Number of Executed Actions

History

Last changed by/on	SAP	20141013
SAP Release Created in	740
