SAP ABAP Table AGS_STATUS_PROP (Customizing: Assignment of Status to Job Doc. Status Attrib.)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-PSM (Application Component) Process Scheduling Management
     ⤷ AGS_EXTJOB_REPOSITORY (Package) Job Scheduling Management Main Package

Basic Data

Table Category	TRANSP	Transparent table

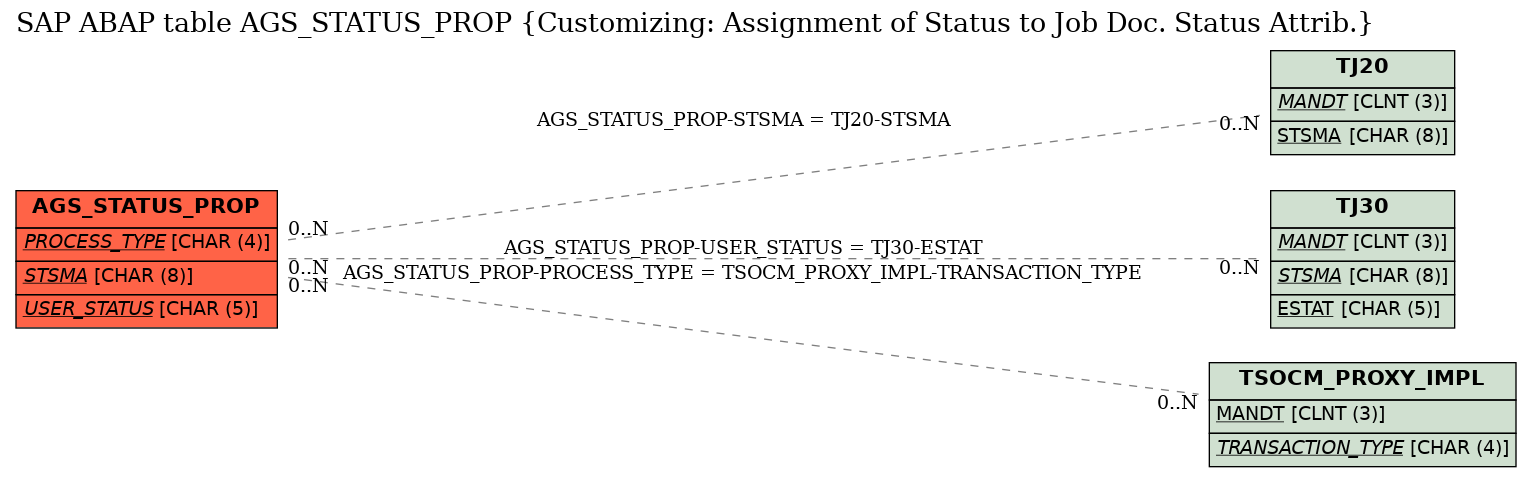

Transparent table	AGS_STATUS_PROP	Table Relationship Diagram
Short Description	Customizing: Assignment of Status to Job Doc. Status Attrib.

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	PROCESS_TYPE	☑	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	TSOCM_PROXY_IMPL
2	STSMA	☑	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	TJ20
3	USER_STATUS	☑	J_ESTAT	J_ESTAT	CHAR	5	0	User Status	TJ30
4	JOB_STAT_PROP	☐	AGS_EJR_STATUS_PROPERTY	AGS_EJR_STATUS_DOM	CHAR	10	0	Job Documentation Status Attributes
5	NO_SYSTEM_CHECK	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	AGS_STATUS_PROP	PROCESS_TYPE	TSOCM_PROXY_IMPL	TRANSACTION_TYPE
2	AGS_STATUS_PROP	STSMA	TJ20	STSMA
3	AGS_STATUS_PROP	USER_STATUS	TJ30	ESTAT

History

Last changed by/on	SAP	20111123
SAP Release Created in	400
