SAP ABAP Table AGS_SCHED_ELEM (Element of User Interface)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-PSM (Application Component) Process Scheduling Management
     ⤷ AGS_EXTJOB_REPOSITORY_EN (Package) Job Documentation

Basic Data

Table Category	TRANSP	Transparent table

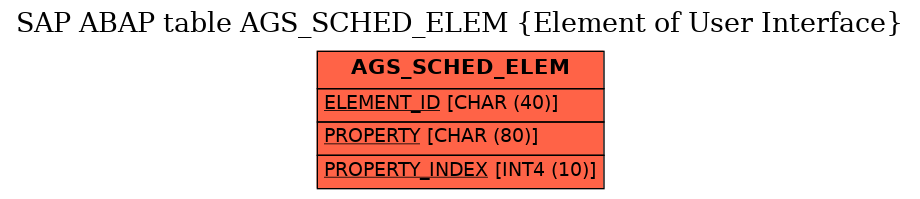

Transparent table	AGS_SCHED_ELEM	Table Relationship Diagram
Short Description	Element of User Interface

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	ELEMENT_ID	☑	AGS_EJR_LAYOUT_ELEMENT_ID	CHAR40	CHAR	40	0	Layout Element
2	PROPERTY	☑	AGS_EJR_ELEMENT_PROPERTY	AGS_EJR_ELEMENT_PROPERTY	CHAR	80	0	Property	*
3	PROPERTY_INDEX	☑	INT4	INT4	INT4	10	0	Natural number
4	VALUE	☐	AGS_EJR_ELEMENT_VALUE	TEXT255	CHAR	255	0	Value
5	ELEMENT_ORDER	☐	INT4	INT4	INT4	10	0	Natural number

History

Last changed by/on	SAP	20100705
SAP Release Created in	400
