SAP ABAP Table AGS_PARAM_LOG (Parameters for Job Log Monitoring)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-PSM (Application Component) Process Scheduling Management
     ⤷ AGS_EXTJOB_REPOSITORY (Package) Job Scheduling Management Main Package

Basic Data

Table Category	TRANSP	Transparent table

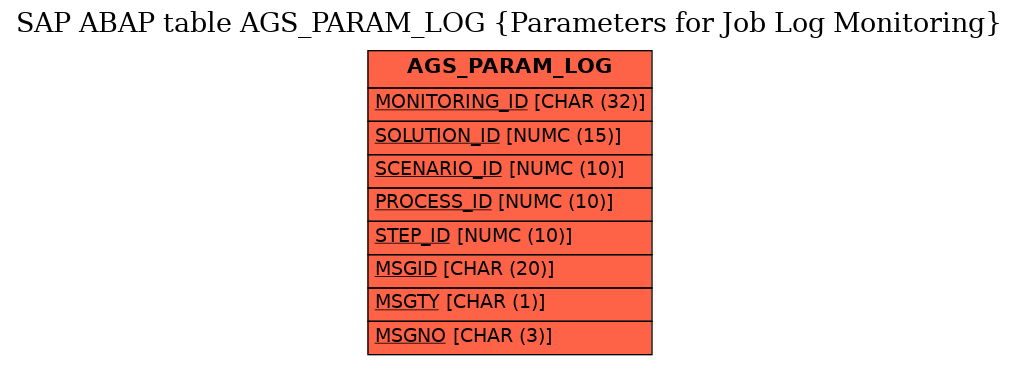

Transparent table	AGS_PARAM_LOG	Table Relationship Diagram
Short Description	Parameters for Job Log Monitoring

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MONITORING_ID	☑	AGS_EJR_IDENTIFIER	SYSUUID_C	CHAR	32	0	Unique ID
2	SOLUTION_ID	☑	DSWPDOBJECTID	DSWPDOBJECTID	NUMC	15	0	Object ID
3	SCENARIO_ID	☑	DMDDOBJECTNO	DMDDOBJECTNO	NUMC	10	0	DMD: Object Number
4	PROCESS_ID	☑	DMDDOBJECTNO	DMDDOBJECTNO	NUMC	10	0	DMD: Object Number
5	STEP_ID	☑	DMDDOBJECTNO	DMDDOBJECTNO	NUMC	10	0	DMD: Object Number
6	MSGID	☑	SYMSGID	ARBGB	CHAR	20	0	Message Class	*
7	MSGTY	☑	SYMSGTY	SYCHAR01	CHAR	1	0	Message Type
8	MSGNO	☑	AGS_BPM_SYMSGNO	AGS_BPM_SYMSGNO	CHAR	3	0	Message Number
9	SOLUTION_GUID	☐	GUID_32	SYSUUID_C	CHAR	32	0	GUID in 'CHAR' Format in Uppercase
10	INACTIVE	☐	FLAG	FLAG	CHAR	1	0	General Flag
11	.INCLUDE	☐				0	0	Job Log Monitoring: Warning Limit Values
12	AMINYEL	☐	INT4	INT4	INT4	10	0	Natural number
13	AMINRED	☐	INT4	INT4	INT4	10	0	Natural number
14	ANUMYEL	☐	INT4	INT4	INT4	10	0	Natural number
15	ANUMRED	☐	INT4	INT4	INT4	10	0	Natural number
16	AMAXYEL	☐	INT4	INT4	INT4	10	0	Natural number
17	AMAXRED	☐	INT4	INT4	INT4	10	0	Natural number
18	ANUMMINYEL	☐	INT4	INT4	INT4	10	0	Natural number
19	ANUMMINRED	☐	INT4	INT4	INT4	10	0	Natural number

History

Last changed by/on	SAP	20100705
SAP Release Created in	400
