SAP ABAP Table AGS_MAP_ROLETYPE (Customizing: Assignment of User Status and System Role)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-PSM (Application Component) Process Scheduling Management
     ⤷ AGS_EXTJOB_REPOSITORY (Package) Job Scheduling Management Main Package

Basic Data

Table Category	TRANSP	Transparent table

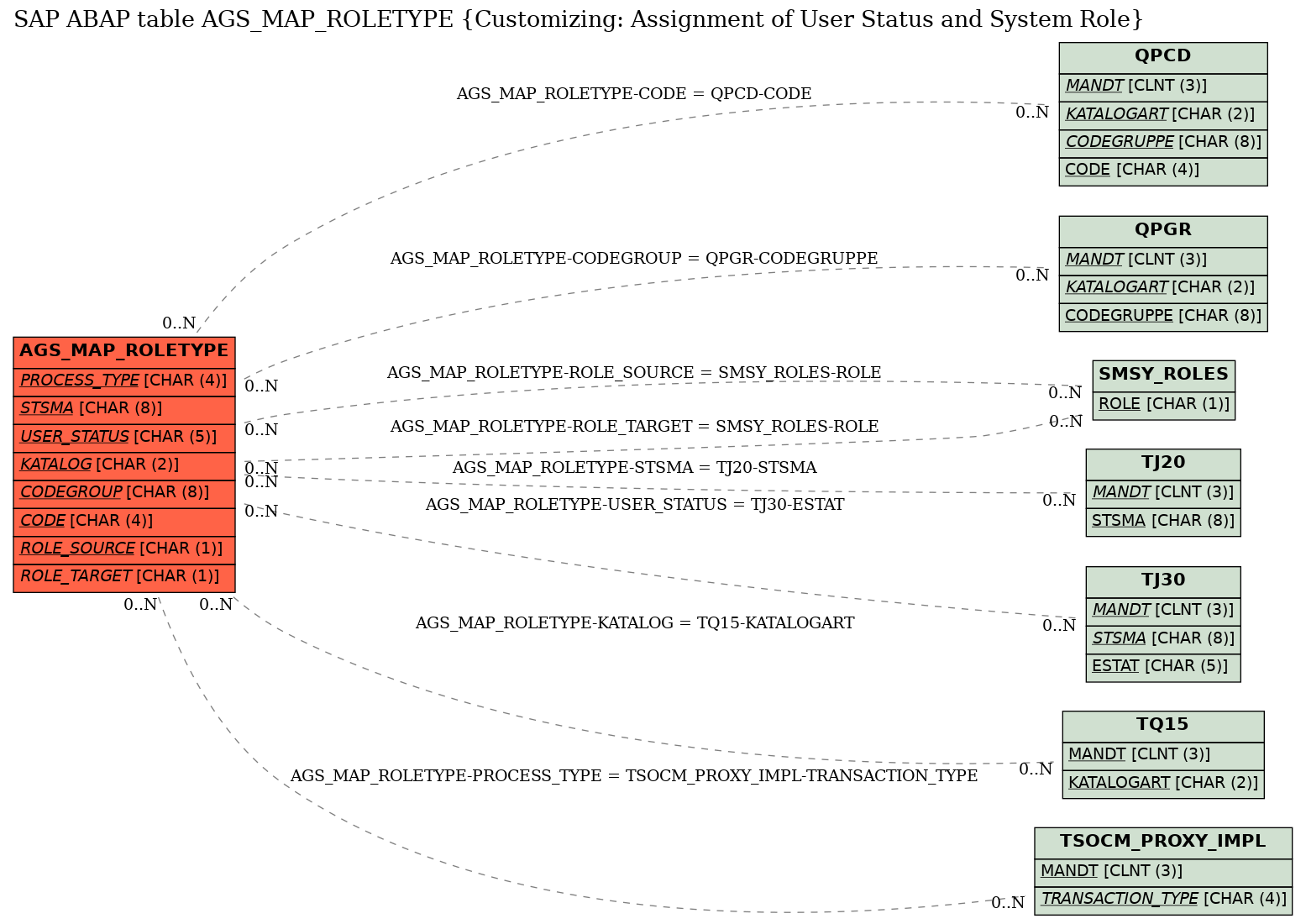

Transparent table	AGS_MAP_ROLETYPE	Table Relationship Diagram
Short Description	Customizing: Assignment of User Status and System Role

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	PROCESS_TYPE	☑	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	TSOCM_PROXY_IMPL
2	STSMA	☑	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	TJ20
3	USER_STATUS	☑	J_ESTAT	J_ESTAT	CHAR	5	0	User Status	TJ30
4	KATALOG	☑	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	TQ15
5	CODEGROUP	☑	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
6	CODE	☑	QCODE	QCODE	CHAR	4	0	Code	QPCD
7	ROLE_SOURCE	☑	SMSY_ROLE	SMSY_ROLE	CHAR	1	0	System Role	SMSY_ROLES
8	ROLE_TARGET	☐	SMSY_ROLE	SMSY_ROLE	CHAR	1	0	System Role	SMSY_ROLES

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	AGS_MAP_ROLETYPE	CODE	QPCD	CODE
2	AGS_MAP_ROLETYPE	CODEGROUP	QPGR	CODEGRUPPE
3	AGS_MAP_ROLETYPE	KATALOG	TQ15	KATALOGART
4	AGS_MAP_ROLETYPE	PROCESS_TYPE	TSOCM_PROXY_IMPL	TRANSACTION_TYPE
5	AGS_MAP_ROLETYPE	ROLE_SOURCE	SMSY_ROLES	ROLE
6	AGS_MAP_ROLETYPE	ROLE_TARGET	SMSY_ROLES	ROLE
7	AGS_MAP_ROLETYPE	STSMA	TJ20	STSMA
8	AGS_MAP_ROLETYPE	USER_STATUS	TJ30	ESTAT

History

Last changed by/on	SAP	20100705
SAP Release Created in	400
