SAP ABAP Table AGR_AGRS (Roles in Composite Roles)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷ BC-SEC-AUT-PFC (Application Component) ABAP Authorization and Role Management
⤷ S_PROFGEN (Package) ABAP Role Administration (Profile Generator)
⤷ BC-SEC-AUT-PFC (Application Component) ABAP Authorization and Role Management
⤷ S_PROFGEN (Package) ABAP Role Administration (Profile Generator)
Basic Data
Table Category | TRANSP | Transparent table |

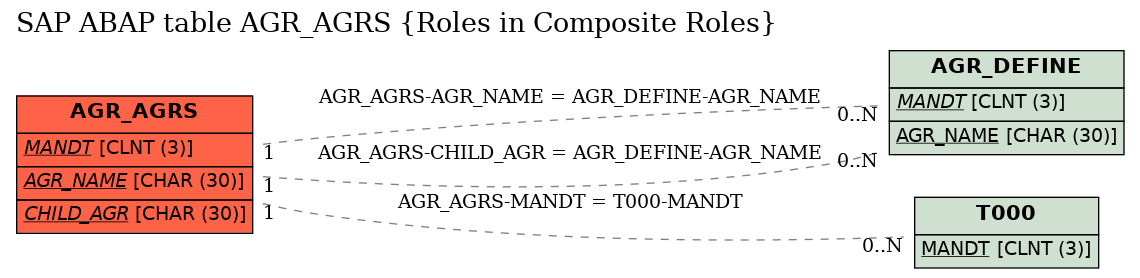

Transparent table | AGR_AGRS | Table Relationship Diagram |
Short Description | Roles in Composite Roles |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | E | Control table, SAP and customer have separate key areas |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MANDT | SYMANDT | MANDT | CLNT | 3 | 0 | Client ID | T000 | |
2 | AGR_NAME | AGR_NAME_C | AGR_NAME | CHAR | 30 | 0 | Composite role | AGR_DEFINE | |
3 | CHILD_AGR | CHILD_AGR | AGR_NAME | CHAR | 30 | 0 | Single Role in Composite Role | AGR_DEFINE | |
4 | ATTRIBUTES | ACTIVE_FLG | CHAR10 | CHAR | 10 | 0 | Assignment active |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | AGR_AGRS | AGR_NAME | AGR_DEFINE | AGR_NAME | KEY | 1 | CN |
2 | AGR_AGRS | CHILD_AGR | AGR_DEFINE | AGR_NAME | KEY | 1 | CN |
3 | AGR_AGRS | MANDT | T000 | MANDT | KEY | 1 | CN |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in |
