SAP ABAP Table /SDF/CSSIZING (Sizing estimation details for HDB Row Store)
Hierarchy
☛
ST-PI (Software Component) SAP Solution Tools Plug-In
⤷
SV-SMG-SDD (Application Component) Service Data Download
⤷
/SDF/STPI_6X (Package) Release 6.XX dependent Basis Addon SLM
ST-PI (Software Component) SAP Solution Tools Plug-In⤷
SV-SMG-SDD (Application Component) Service Data Download⤷
/SDF/STPI_6X (Package) Release 6.XX dependent Basis Addon SLM
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | /SDF/CSSIZING |

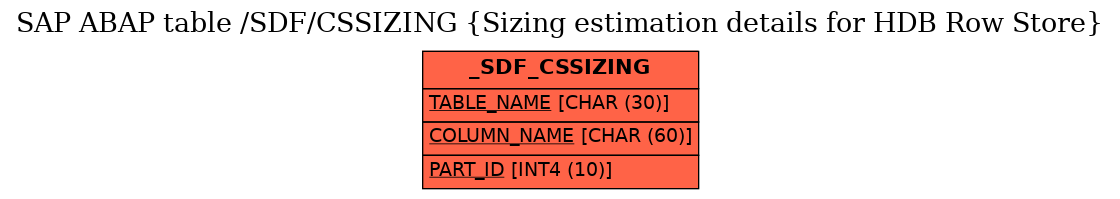

Table Relationship Diagram
|
| Short Description | Sizing estimation details for HDB Row Store |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | L | Table for storing temporary data, delivered empty |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  TABLE_NAME |
/SDF/TABLENAME | CHAR | 30 | 0 | Table name | |||
| 2 | COLUMN_NAME |
/SDF/COLUMNNAME | CHAR | 60 | 0 | Column name | |||
| 3 | PART_ID |
/SDF/PARTID | INT4 | 10 | 0 | Partition ID | |||
| 4 | KEYFLAG |
/SDF/PKFIELD | CHAR | 1 | 0 | Identifies a primary key field | |||
| 5 | HAS_INDEX |
/SDF/SKFIELD | CHAR | 1 | 0 | Identifies a secondary key field | |||
| 6 | NOPK_TYPE |
/SDF/NKFIELD | CHAR | 1 | 0 | Identify a table with no primary key | |||
| 7 | MS_TOTAL |
/SDF/MS | DEC | 20 | 0 | Total memory size in bytes | |||
| 8 | MS_MAIN |
/SDF/MAINS | DEC | 20 | 0 | Main memory size in bytes | |||
| 9 | EST_MS_MAIN |
/SDF/ESTMS | DEC | 20 | 0 | Estimated memory size in bytes | |||
| 10 | RECORD_COUNT |
/SDF/RECCOUNT | DEC | 20 | 0 | Number of records in the table | |||
| 11 | DISTINCT_COUNT |
/SDF/DISTCOUNT | DEC | 20 | 0 | Disctinct count | |||
| 12 | LOADED |
/SDF/LOADED | CHAR | 5 | 0 | Load status | |||
| 13 | INDEX_LOADED |
/SDF/KEYLOADED | CHAR | 16 | 0 | Index load status | |||
| 14 | COMPRESSION_TYPE |
/SDF/COPMTYPE | CHAR | 16 | 0 | Compression type | |||
| 15 | MS_DICT |
/SDF/DICTMS | DEC | 20 | 0 | Dictionnary size in bytes | |||
| 16 | EST_MS_DICT |
/SDF/ESTDICTMS | DEC | 20 | 0 | Estimated dictionnary size in bytes | |||
| 17 | MS_INDEX |
/SDF/INDEXMS | DEC | 20 | 0 | Index memory size in bytes | |||
| 18 | EST_MS_INDEX |
/SDF/ESTINDEXMS | DEC | 20 | 0 | Estimated index memory size in bytes | |||
| 19 | MS_DATA |
/SDF/DATAMS | DEC | 20 | 0 | Data size in bytes | |||
| 20 | EST_MS_DATA |
/SDF/ESTDATAMS | DEC | 20 | 0 | Estimated data memory size in bytes | |||
| 21 | MS_MISC |
/SDF/MISCMS | DEC | 20 | 0 | Miscelaneous size in bytes | |||
| 22 | EST_MS_MISC |
/SDF/ESTMISCMS | DEC | 20 | 0 | Estimated miscelaneous size in bytes | |||
| 23 | TYPEKIND |
/SDF/DATATYPE | CHAR | 1 | 0 | Category of dictionnary type | |||
| 24 | SIZE_IN_BYTE |
/SDF/FIELDSIZE | DEC | 16 | 2 | Average field size in bytes | |||
| 25 | LOB_SIZE_IN_BYTE |
/SDF/LOBFIELDSIZE | DEC | 16 | 2 | Average LOB field size in bytes |
History
| Last changed by/on | SAP | 20140922 |
| SAP Release Created in | 2008_1_620 |
