SAP ABAP Table /SAPSRM/D_WF_EXP (Mapping old WF <-> expression <-> new WF)

Hierarchy

☛ SRM_SERVER (Software Component) SRM_SERVER
   ⤷ SRM-EBP-WFL (Application Component) Workflow
     ⤷ /SAPSRM/WF_UPGRADE (Package) Workflow Upgrade

Basic Data

Table Category	TRANSP	Transparent table

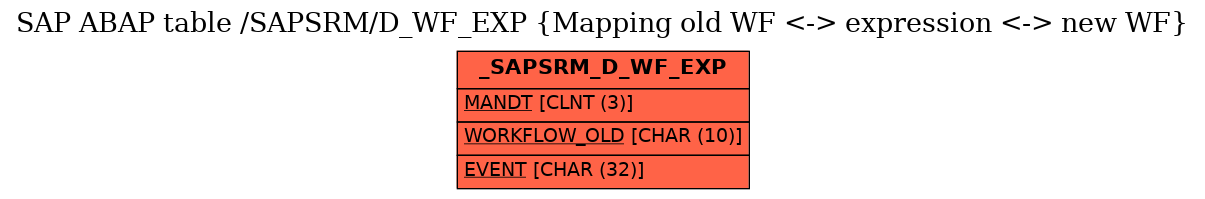

Transparent table	/SAPSRM/D_WF_EXP	Table Relationship Diagram
Short Description	Mapping old WF <-> expression <-> new WF

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	WORKFLOW_OLD	☑	SWD_WFD_ID	SWD_WFDIDS	CHAR	10	0	Number of workflow definition	*
3	EVENT	☑	SWO_EVENT	SWC_ELEM	CHAR	32	0	Event
4	EXPRESSION	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	*
5	WORKFLOW_NEW	☐	SWD_WFD_ID	SWD_WFDIDS	CHAR	10	0	Number of workflow definition	*
6	LEVEL_SEQNR	☐	/SAPSRM/WF_PROCESS_LEVEL_SEQNR	NUM03	NUMC	3	0	Process Level Sequence Number
7	APPROVAL_TASK_ID	☐	/SAPSRM/WF_WORKFLOW_TASK_ID	HR_SOBJID	NUMC	8	0	Workflow Task Identifier	*
8	OBJTYPE	☐	SIBFTYPEID	SIBFTYPEID	CHAR	32	0	Type of Objects in Persistent Object References
9	SCHEME	☐	/SAPSRM/WF_PROCESS_SCHEME	CHAR32	CHAR	32	0	Process Level Schema
10	FRAGMENT	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	*

History

Last changed by/on	SAP	20110913
SAP Release Created in	600
