SAP ABAP Table /SAPSRM/C_WD_TEC (Settings for Columm Visibility of Table Extensions on UI)

Hierarchy

☛ SRM_SERVER (Software Component) SRM_SERVER
   ⤷ SRM-EBP-CA-UI (Application Component) User Interface/Templates
     ⤷ /SAPSRM/CH_WD_EXTENSIONS (Package) Web Dynpro UI related implemenation

Basic Data

Table Category	TRANSP	Transparent table

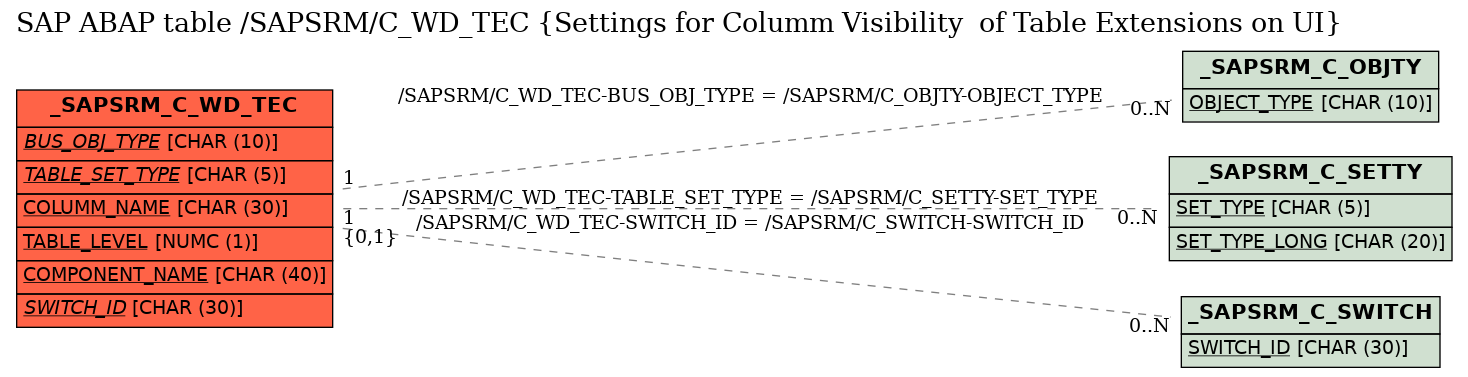

Transparent table	/SAPSRM/C_WD_TEC	Table Relationship Diagram
Short Description	Settings for Columm Visibility of Table Extensions on UI

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	BUS_OBJ_TYPE	☑	/SAPSRM/OBJECT_TYPE_MD	/SAPSRM/OBJECT_TYPE_MD	CHAR	10	0	Type of an object used for metadata	/SAPSRM/C_OBJTY
2	TABLE_SET_TYPE	☑	/SAPSRM/PDO_TABLE_SET_TYPE	/SAPSRM/PDO_SET_TYPE	CHAR	5	0	Business Object Set Type for Table Extensions	/SAPSRM/C_SETTY
3	COLUMM_NAME	☑	/SAPSRM/CH_WD_TABLE_COLUMN_NAM	FDNAME	CHAR	30	0	Name of Extension Table Column	*
4	TABLE_LEVEL	☑	/SAPSRM/CLL_WD_MAP_CFG_SCOPE_N	/SAPSRM/CLL_WD_MAP_CFG_SCOPE_N	NUMC	1	0	Configuration Scope of a Mapper
5	COMPONENT_NAME	☑	TEXT40	TEXT40	CHAR	40	0	Text, 40 Characters Long
6	SWITCH_ID	☑	/SAPSRM/CUSTMZ_SWITCH_ID	/SAPSRM/CUSTMZ_SWITCH_ID	CHAR	30	0	Customizing Switch ID	/SAPSRM/C_SWITCH
7	SWITCH_PRIO	☐	/SAPSRM/CUSTMZ_SWITCH_PRIO	NUM3	NUMC	3	0	Priority of Switched Table Entry
8	VIEW_NAME	☐	TEXT40	TEXT40	CHAR	40	0	Text, 40 Characters Long
9	COMP_USAGE_NAME	☐	TEXT40	TEXT40	CHAR	40	0	Text, 40 Characters Long
10	DYNAMIC_DROPDOWN	☐	XFELD	XFELD	CHAR	1	0	Checkbox
11	HIDE	☐	XFELD	XFELD	CHAR	1	0	Checkbox
12	ALIGNMENT	☐	WDUI_INPUT_FIELD_ALIGNMENT	WDUI_INPUT_FIELD_ALIGNMENT	NUMC	2	0	Web Dynpro: InputFieldAlignment
13	TYPE_OF_COL_TEXT	☐	/SAPSRM/LABEL_TEXT_ENUM	/SAPSRM/TYPE_OF_LABEL_TEXT	NUMC	2	0	Type of Column Heading Text
14	LINK_TO_ACTION	☐	/SAPSRM/LINKTOACTION	/SAPSRM/LINKTOACTION	CHAR	1	0	CustExt Table: Table column fields as link-to-action element

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSRM/C_WD_TEC	BUS_OBJ_TYPE	/SAPSRM/C_OBJTY	OBJECT_TYPE	KEY	1	CN
2	/SAPSRM/C_WD_TEC	SWITCH_ID	/SAPSRM/C_SWITCH	SWITCH_ID	KEY	C	CN
3	/SAPSRM/C_WD_TEC	TABLE_SET_TYPE	/SAPSRM/C_SETTY	SET_TYPE	KEY	1	CN

History

Last changed by/on	SAP	20110913
SAP Release Created in	600
