SAP ABAP Table /SAPPSSRM/C_MDF (System Configuration Table for Field Metadata)

Hierarchy

☛ SRM_SERVER (Software Component) SRM_SERVER
   ⤷ SRM-EBP-PD (Application Component) Procurement Document Methods
     ⤷ /SAPPSSRM/BO_RULEFRAMEWORK (Package) Rule framework (BORF)

Basic Data

Table Category	TRANSP	Transparent table

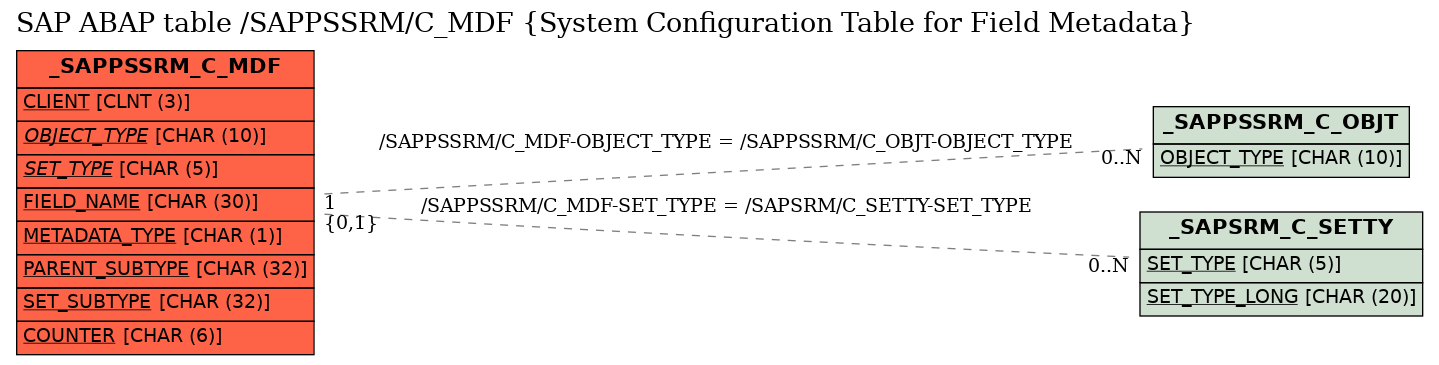

Transparent table	/SAPPSSRM/C_MDF	Table Relationship Diagram
Short Description	System Configuration Table for Field Metadata

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance	N	Display/Maintenance Not Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	EC_CLIENT	MANDT	CLNT	3	0	Client	*
2	OBJECT_TYPE	☑	/SAPPSSRM/OBJECT_TYPE	/SAPPSSRM/OBJECT_TYPE	CHAR	10	0	Type of Object Used in Rule Framework	/SAPPSSRM/C_OBJT
3	SET_TYPE	☑	/SAPSRM/PDO_SET_TYPE	/SAPSRM/PDO_SET_TYPE	CHAR	5	0	Business Object Set Type	/SAPSRM/C_SETTY
4	FIELD_NAME	☑	/SAPSRM/PDO_META_FIELD_NAME	FDNAME	CHAR	30	0	Structure Field Name for Metadata Handling in PDO layer	*
5	METADATA_TYPE	☑	/SAPPSSRM/RF_MD_FIELD_MD_TYPE	/SAPPSSRM/RF_MD_FIELD_MD_TYPE	CHAR	1	0	Field Metadata Type
6	PARENT_SUBTYPE	☑	/SAPPSSRM/RF_MD_PARENT_SUBTYPE	/SAPPSSRM/RF_MD_PARENT_SUBTYPE	CHAR	32	0	Universal Field for Parent Subtypes
7	SET_SUBTYPE	☑	/SAPPSSRM/RF_MD_SET_SUBTYPE	/SAPPSSRM/RF_MD_SET_SUBTYPE	CHAR	32	0	Universal Field for Set Subtypes
8	COUNTER	☑	CHAR6	CHAR6	CHAR	6	0	Character field of length 6
9	METADATA	☐	/SAPPSSRM/RF_MD_FIELD	/SAPPSSRM/RF_MD_FIELD	CHAR	1	0	Field Metadata (Internal Format)
10	DYN_CONTROL_CLAS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration
11	DYN_CONTROL_METH	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.
12	OLD_METHOD	☐	XFELD	XFELD	CHAR	1	0	Checkbox
13	METADATA_OLD	☐	CHAR6	CHAR6	CHAR	6	0	Character field of length 6
14	OLD_DO_CLASS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration
15	OLD_DO_METHOD	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPPSSRM/C_MDF	OBJECT_TYPE	/SAPPSSRM/C_OBJT	OBJECT_TYPE	KEY	1	CN
2	/SAPPSSRM/C_MDF	SET_TYPE	/SAPSRM/C_SETTY	SET_TYPE	KEY	C	CN

History

Last changed by/on	SAP	20130528
SAP Release Created in	700
