SAP ABAP Table /SAPPSSRM/C_MDA (System Action Metadata in Rule Framework)

Hierarchy

☛ SRM_SERVER (Software Component) SRM_SERVER
   ⤷ SRM-EBP-PD (Application Component) Procurement Document Methods
     ⤷ /SAPPSSRM/BO_RULEFRAMEWORK (Package) Rule framework (BORF)

Basic Data

Table Category	TRANSP	Transparent table

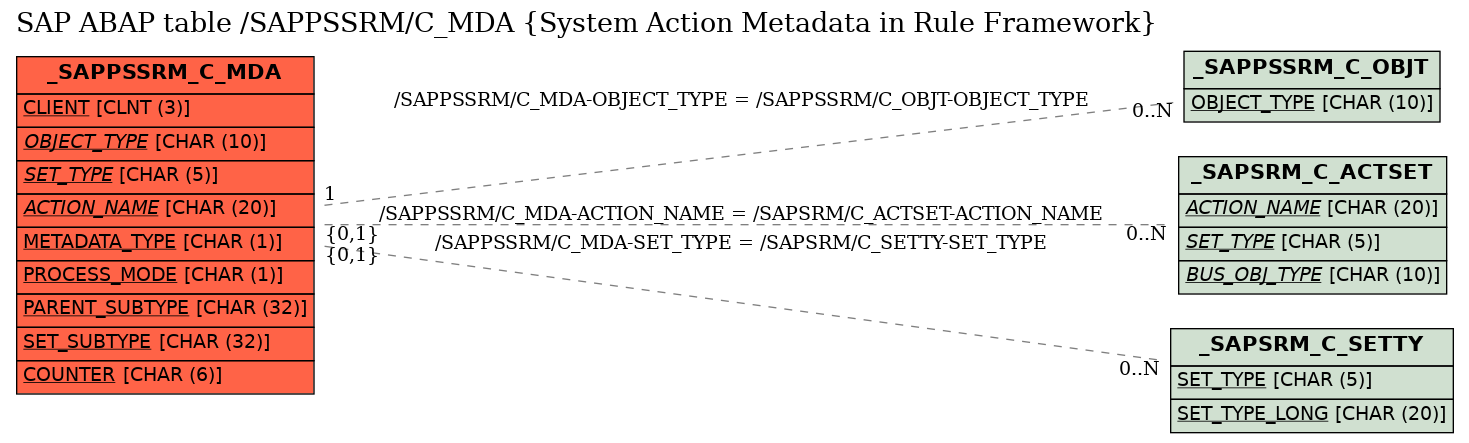

Transparent table	/SAPPSSRM/C_MDA	Table Relationship Diagram
Short Description	System Action Metadata in Rule Framework

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance	N	Display/Maintenance Not Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	EC_CLIENT	MANDT	CLNT	3	0	Client	*
2	OBJECT_TYPE	☑	/SAPPSSRM/OBJECT_TYPE	/SAPPSSRM/OBJECT_TYPE	CHAR	10	0	Type of Object Used in Rule Framework	/SAPPSSRM/C_OBJT
3	SET_TYPE	☑	/SAPSRM/PDO_SET_TYPE	/SAPSRM/PDO_SET_TYPE	CHAR	5	0	Business Object Set Type	/SAPSRM/C_SETTY
4	ACTION_NAME	☑	/SAPSRM/PDO_ACTION_TYPE	/SAPSRM/PDO_ACTION_TYPE	CHAR	20	0	PDO Action Type	/SAPSRM/C_ACTSET
5	METADATA_TYPE	☑	/SAPPSSRM/RF_MD_TYPE	/SAPPSSRM/RF_MD_TYPE	CHAR	1	0	Metadata Type
6	PROCESS_MODE	☑	/SAPPSSRM/RF_MD_PROCESS_MODE	/SAPPSSRM/RF_MD_PROCESS_MODE	CHAR	1	0	Processing Mode of Rule Framework Instance
7	PARENT_SUBTYPE	☑	/SAPPSSRM/RF_MD_PARENT_SUBTYPE	/SAPPSSRM/RF_MD_PARENT_SUBTYPE	CHAR	32	0	Universal Field for Parent Subtypes
8	SET_SUBTYPE	☑	/SAPPSSRM/RF_MD_SET_SUBTYPE	/SAPPSSRM/RF_MD_SET_SUBTYPE	CHAR	32	0	Universal Field for Set Subtypes
9	COUNTER	☑	CHAR6	CHAR6	CHAR	6	0	Character field of length 6
10	METADATA	☐	/SAPPSSRM/RF_MD_ACTION	/SAPPSSRM/RF_MD_ACTION	CHAR	1	0	Action Metadata (Internal Format)
11	DYN_CONTROL_CLAS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration
12	DYN_CONTROL_METH	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.
13	OLD_METHOD	☐	XFELD	XFELD	CHAR	1	0	Checkbox
14	METADATA_OLD	☐	CHAR6	CHAR6	CHAR	6	0	Character field of length 6
15	OLD_DO_CLASS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration
16	OLD_DO_METHOD	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPPSSRM/C_MDA	ACTION_NAME	/SAPSRM/C_ACTSET	ACTION_NAME	KEY	C	CN
2	/SAPPSSRM/C_MDA	OBJECT_TYPE	/SAPPSSRM/C_OBJT	OBJECT_TYPE	KEY	1	CN
3	/SAPPSSRM/C_MDA	SET_TYPE	/SAPSRM/C_SETTY	SET_TYPE	KEY	C	CN

History

Last changed by/on	SAP	20130528
SAP Release Created in	700
