SAP ABAP Table WDY_CHIP_PORT_XT_UI (CHIP Port with Texts)

Hierarchy

☛ SAP_UI (Software Component) User Interface Technology
   ⤷ BC-WD-ABA-PB (Application Component) WD ABAP Page Builder
     ⤷ SWDP_DWB_TOOL_CHIP (Package) Web Dynpro Tool: CHIP Configuration

Basic Data

Table Category	INTTAB	Structure

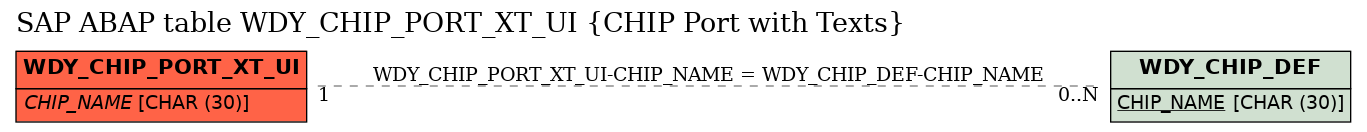

Structure	WDY_CHIP_PORT_XT_UI	Table Relationship Diagram
Short Description	CHIP Port with Texts

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	CHIP Port with Texts
2	.INCLUDE	☐				0	0	CHIP Port with Texts
3	.INCLUDE	☐				0	0	Ports of a CHIP
4	CHIP_NAME	☐	WDY_CHIP_NAME		CHAR	30	0	Name of CHIP	WDY_CHIP_DEF
5	PORT_NAME	☐	WDY_PORT_NAME	WDY_PORT_NAME	CHAR	30	0	Port Name of CHIP
6	PORT_KIND	☐	WDY_PORT_KIND	WDY_PORT_KIND	CHAR	1	0	Type of Port (In/Out)
7	ABAP_TYPE	☐	WDY_MD_ABAP_TYPE		CHAR	132	0	Web Dynpro: ABAP Type of a Parameter/Property
8	IMPLEMENTING_OBJ	☐	WDY_MD_OBJECT_NAME	WDY_MD_OBJECT_NAME	CHAR	30	0	Web Dynpro: Name of a Web Dynpro Metadata Object
9	IMPL_OBJ_PARAM	☐	WDY_MD_OBJECT_NAME	WDY_MD_OBJECT_NAME	CHAR	30	0	Web Dynpro: Name of a Web Dynpro Metadata Object
10	.INCLUDE	☐				0	0	Description Texts for CHIP Objects
11	DISPLAY_NAME	☐	WDY_CHIP_DISPLAY_NAME	WDY_CHIP_DISPLAY_NAME	CHAR	60	0	Display Name of CHIP Object
12	DESCRIPTION	☐	WDY_CHIP_DESCRIPTION	WDY_CHIP_DESCRIPTION	CHAR	120	0	Short Description of Object
13	SUBMITTED	☐	WDY_CHIP_SUBMITTED	WDY_CHIP_SUBMITTED	CHAR	1	0	Entry from Database
14	FIELD_PROPERTIES	☐	WDY_FIELD_PROPERTIES_TAB		TTYP	0	0
15	FIELD_STYLE	☐	LVC_T_STYL		TTYP	0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	WDY_CHIP_PORT_XT_UI	CHIP_NAME	WDY_CHIP_DEF	CHIP_NAME	KEY	1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	800
