SAP ABAP Table WDRV_ADP_GETMP (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

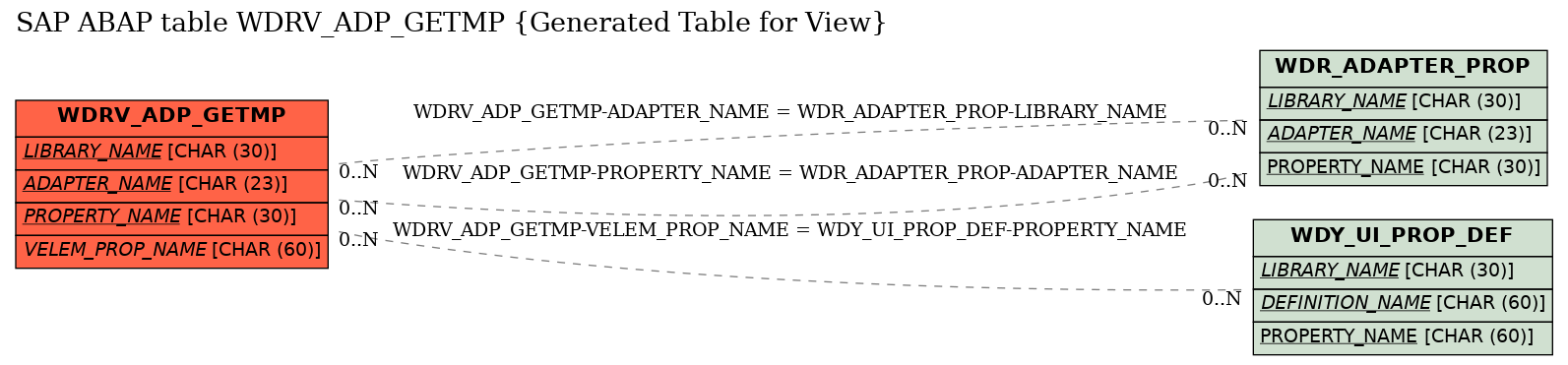

General view structure	WDRV_ADP_GETMP	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	LIBRARY_NAME	☑	WDY_MD_UI_ELEMENT_LIBRARY	WDY_MD_UI_ELEMENT_LIBRARY	CHAR	30	0	Web Dynpro : Name einer UI-Element-Library	WDR_ADAPTER_PROP
2	ADAPTER_NAME	☑	WDR_ADAPTER_NAME	WDR_ADAPTER_NAME	CHAR	23	0	Web Dynpro Runtime: Adapter Name	WDR_ADAPTER_PROP
3	PROPERTY_NAME	☑	SEOCMPNAME	CHAR30	CHAR	30	0	Component name	WDR_ADAPTER_PROP
4	MAPPING_RULE	☐	WDR_ADAPTER_PROP_MAPPING_RULE	WDR_ADAPTER_PROP_MAPPING_RULE	NUMC	2	0	Web Dynpro Runtime: Mapping Rule for Adapter Attribute
5	VELEM_PROP_NAME	☐	WDY_MD_UI_ELEMENT_PROP_NAME	WDY_MD_UI_ELEMENT_PROP_NAME	CHAR	60	0	Web Dynpro: Name of a Web Dynpro Metadata Object	WDY_UI_PROP_DEF
6	TYPTYPE	☐	SEOTYPTYPE	SEOTYPTYPE	NUMC	1	0	Typing
7	DECLTYPE	☐	SEOATTDECL	SEOATTDECL	NUMC	1	0	Attribute declaration level
8	EXPOSURE	☐	SEOEXPOSE	SEOEXPOSE	NUMC	1	0	Visibility of a class or component
9	READ_ONLY	☐	WDY_BOOLEAN	WDY_BOOLEAN	CHAR	1	0	Replacement for Real Boolean Type: 'X' == True '' == False
10	TYPE	☐	CHAR200	CHAR200	CHAR	200	0	Text field length 200
11	VALUE	☐	SEOVALUE	TEXT132	CHAR	132	0	Initial value
12	IS_UCA_AFTER	☐	WDY_BOOLEAN	WDY_BOOLEAN	CHAR	1	0	Replacement for Real Boolean Type: 'X' == True '' == False
13	DEP_PROP_NAME	☐	SEOCMPNAME	CHAR30	CHAR	30	0	Component name
14	IS_BIDIRECTIONAL	☐	WDR_ADAPTER_PROP_BIDIRECT_MODE	WDR_ADAPTER_PROP_BIDIRECT_MODE	CHAR	1	0	Settings for Bi-Directional Attributes
15	RENDER_HINPFIELD	☐	WDY_BOOLEAN	WDY_BOOLEAN	CHAR	1	0	Replacement for Real Boolean Type: 'X' == True '' == False
16	IS_LOCAL	☐	WDY_BOOLEAN	WDY_BOOLEAN	CHAR	1	0	Replacement for Real Boolean Type: 'X' == True '' == False
17	ENFORCE_ESCAPING	☐	WDR_ADP_PROP_ENFORCE_ESCAPING	WDR_ADP_PROP_ENFORCE_ESCAPING	CHAR	1	0	Escaping Mode
18	CHECK_VALIDITY	☐	WDY_BOOLEAN	WDY_BOOLEAN	CHAR	1	0	Replacement for Real Boolean Type: 'X' == True '' == False

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	WDRV_ADP_GETMP	ADAPTER_NAME	WDR_ADAPTER_PROP	LIBRARY_NAME
2	WDRV_ADP_GETMP	PROPERTY_NAME	WDR_ADAPTER_PROP	ADAPTER_NAME
3	WDRV_ADP_GETMP	VELEM_PROP_NAME	WDY_UI_PROP_DEF	PROPERTY_NAME

History

Last changed by/on	SAP	20110908
SAP Release Created in
