SAP ABAP Table WDR_ADP_EVENT_MP (Web Dynpro Runtime: Adapter Event)

Hierarchy

☛ SAP_UI (Software Component) User Interface Technology
   ⤷ BC-WD-ABA-REN (Application Component) Web Dynpro ABAP Rendering
     ⤷ SWDP_RUNTIME_RENDERING (Package) Web Dynpro Runtime: Rendering

Basic Data

Table Category	TRANSP	Transparent table

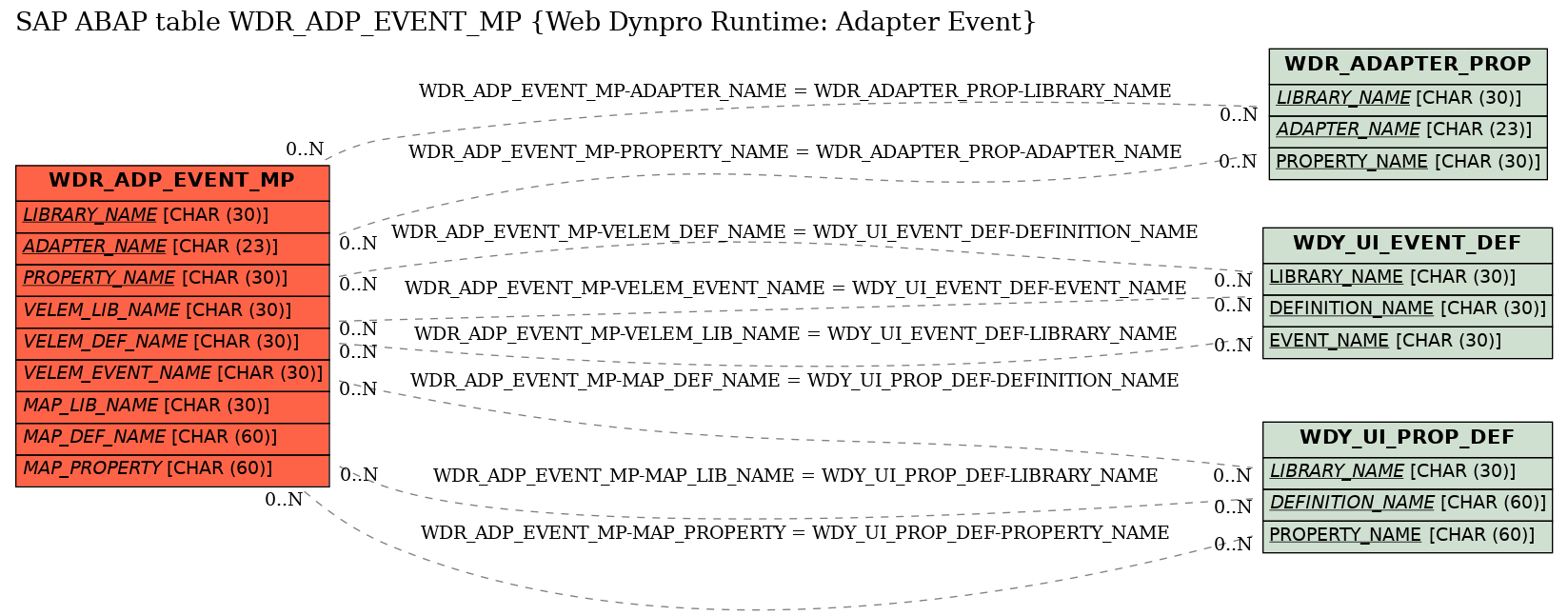

Transparent table	WDR_ADP_EVENT_MP	Table Relationship Diagram
Short Description	Web Dynpro Runtime: Adapter Event

Delivery and Maintenance

Pool/cluster
Delivery Class	W	System table, contents transportable via separate TR objects
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	Web Dynpro: Key of View Element Adapter Properties
2	LIBRARY_NAME	☑	WDY_MD_UI_ELEMENT_LIBRARY	WDY_MD_UI_ELEMENT_LIBRARY	CHAR	30	0	Web Dynpro : Name einer UI-Element-Library	WDR_ADAPTER_PROP
3	ADAPTER_NAME	☑	WDR_ADAPTER_NAME	WDR_ADAPTER_NAME	CHAR	23	0	Web Dynpro Runtime: Adapter Name	WDR_ADAPTER_PROP
4	PROPERTY_NAME	☑	SEOCMPNAME	CHAR30	CHAR	30	0	Component name	WDR_ADAPTER_PROP
5	EVENT_NAME	☐	WDY_MD_OBJECT_NAME	WDY_MD_OBJECT_NAME	CHAR	30	0	Web Dynpro: Name of a Web Dynpro Metadata Object
6	EVENT_PARAM	☐	WDR_ADAPTER_EVENT_PARAM_POS	WDR_ADAPTER_EVENT_PARAM_POS	NUMC	1	0	Web Dynpro: Number of Event Parameter
7	VELEM_LIB_NAME	☐	WDY_MD_UI_ELEMENT_LIBRARY	WDY_MD_UI_ELEMENT_LIBRARY	CHAR	30	0	Web Dynpro : Name einer UI-Element-Library	WDY_UI_EVENT_DEF
8	VELEM_DEF_NAME	☐	WDY_MD_OBJECT_NAME	WDY_MD_OBJECT_NAME	CHAR	30	0	Web Dynpro: Name of a Web Dynpro Metadata Object	WDY_UI_EVENT_DEF
9	VELEM_EVENT_NAME	☐	WDY_MD_OBJECT_NAME	WDY_MD_OBJECT_NAME	CHAR	30	0	Web Dynpro: Name of a Web Dynpro Metadata Object	WDY_UI_EVENT_DEF
10	MAP_LIB_NAME	☐	WDY_MD_UI_ELEMENT_LIBRARY	WDY_MD_UI_ELEMENT_LIBRARY	CHAR	30	0	Web Dynpro : Name einer UI-Element-Library	WDY_UI_PROP_DEF
11	MAP_DEF_NAME	☐	WDY_MD_UI_ELEMENT_DEF_NAME	WDY_MD_UI_ELEMENT_DEF_NAME	CHAR	60	0		WDY_UI_PROP_DEF
12	MAP_PROPERTY	☐	WDY_MD_UI_ELEMENT_PROP_NAME	WDY_MD_UI_ELEMENT_PROP_NAME	CHAR	60	0	Web Dynpro: Name of a Web Dynpro Metadata Object	WDY_UI_PROP_DEF
13	MAP_AS_EXTERNAL	☐	WDY_BOOLEAN	WDY_BOOLEAN	CHAR	1	0	Replacement for Real Boolean Type: 'X' == True '' == False
14	UCA_HANDLE_EVENT	☐	WDY_BOOLEAN	WDY_BOOLEAN	CHAR	1	0	Replacement for Real Boolean Type: 'X' == True '' == False
15	UCA_ADD_EVENT_P	☐	WDY_BOOLEAN	WDY_BOOLEAN	CHAR	1	0	Replacement for Real Boolean Type: 'X' == True '' == False
16	EVENT_COND	☐	WDR_ADAPTER_PROP_EVENT_COND	WDR_ADAPTER_PROP_EVENT_COND	NUMC	2	0	Web Dynpro: Adapter Event Execution
17	RENDER_DYNAMIC	☐	WDY_BOOLEAN	WDY_BOOLEAN	CHAR	1	0	Replacement for Real Boolean Type: 'X' == True '' == False
18	USE_DEFAULT	☐	WDY_BOOLEAN	WDY_BOOLEAN	CHAR	1	0	Replacement for Real Boolean Type: 'X' == True '' == False
19	UCA_AFTER_UPDATE	☐	WDY_BOOLEAN	WDY_BOOLEAN	CHAR	1	0	Replacement for Real Boolean Type: 'X' == True '' == False
20	NW7_EVENT	☐	WDR_ADP_LOWER_CASE_SSTRING	WDR_ADP_LOWER_CASE_SSTRING	SSTR	255	0	SSTRING in Lower Case
21	NW7_EVENT_PARAM	☐	WDR_ADP_LOWER_CASE_SSTRING	WDR_ADP_LOWER_CASE_SSTRING	SSTR	255	0	SSTRING in Lower Case
22	CLIENT_PARAM_JS	☐	WDR_ADP_LOWER_CASE_SSTRING	WDR_ADP_LOWER_CASE_SSTRING	SSTR	255	0	SSTRING in Lower Case
23	CLIENT_HANDLING	☐	WDR_ADP_CLIENT_EVENT_HANDLING	WDR_ADP_CLIENT_EVENT_HANDLING	NUMC	2	0	Adapter: Event Processing in Client

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	WDR_ADP_EVENT_MP	ADAPTER_NAME	WDR_ADAPTER_PROP	LIBRARY_NAME
2	WDR_ADP_EVENT_MP	MAP_DEF_NAME	WDY_UI_PROP_DEF	DEFINITION_NAME
3	WDR_ADP_EVENT_MP	MAP_LIB_NAME	WDY_UI_PROP_DEF	LIBRARY_NAME
4	WDR_ADP_EVENT_MP	MAP_PROPERTY	WDY_UI_PROP_DEF	PROPERTY_NAME
5	WDR_ADP_EVENT_MP	PROPERTY_NAME	WDR_ADAPTER_PROP	ADAPTER_NAME
6	WDR_ADP_EVENT_MP	VELEM_DEF_NAME	WDY_UI_EVENT_DEF	DEFINITION_NAME
7	WDR_ADP_EVENT_MP	VELEM_EVENT_NAME	WDY_UI_EVENT_DEF	EVENT_NAME
8	WDR_ADP_EVENT_MP	VELEM_LIB_NAME	WDY_UI_EVENT_DEF	LIBRARY_NAME

History

Last changed by/on	SAP	20110908
SAP Release Created in	700
