SAP ABAP Table WCF_GIL_OBJECTS (BOL model objects)

Hierarchy

☛ WEBCUIF (Software Component) SAP Web UI Framework
   ⤷ CA-WUI-GOL-GIL (Application Component) Generic Interaction Layer
     ⤷ CRM_GENIL_CUST (Package) Customizing Objects for Generic Interaction Layer

Basic Data

Table Category	TRANSP	Transparent table

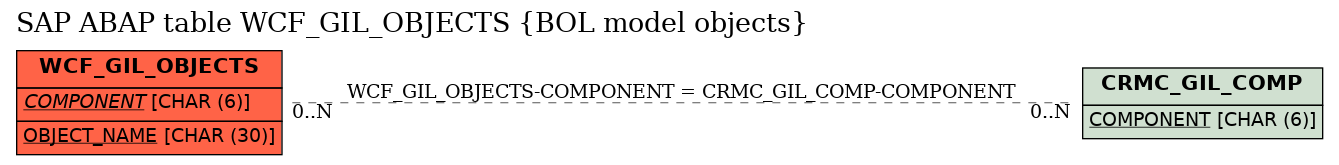

Transparent table	WCF_GIL_OBJECTS	Table Relationship Diagram
Short Description	BOL model objects

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	COMPONENT	☑	CRMT_COMPONENT_NAME	CRM_COMPONENT_NAME	CHAR	6	0	Component Name	CRMC_GIL_COMP
2	OBJECT_NAME	☑	WCF_OBJECT_NAME	CRM_OBJEXT_NAME	CHAR	30	0	Object Name
3	.INCLUDE	☐				0	0	Structure for WCF_GIL_OBJECTS
4	.INCLUDE	☐				0	0	Business Object Properties - Without Attributes; DD fields
5	OBJECT_KIND	☐	CRMT_OBJKIND	CRM_OBJKIND	CHAR	1	0	Object Type
6	KEY_STRUCT	☐	WCF_KEY_STRUCT	AS4TAB	CHAR	30	0	Key Structure Name	*
7	ATTR_STRUCT	☐	WCF_ATTR_STRUCT	AS4TAB	CHAR	30	0	Attribute Structure Name	*
8	CREATE_STRUCT	☐	WCF_CREATE_STRUCT	AS4TAB	CHAR	30	0	Create Structure Name	*
9	ROOT_OBJECT	☐	WCF_ROOT_OBJECT	CRM_OBJEXT_NAME	CHAR	30	0	Root Object
10	MAPPING_TYPE	☐	CRMT_GENIL_MAPPING_TYPE	CRM_GENIL_MAPPING_TYPE	CHAR	1	0	Attribute - Mapping Type
11	ATTR_NUMBER	☐	WCF_ATTR_NUMBER	INT4	INT4	10	0	Attribute Number
12	WS_ENABLED	☐	WCF_WS_ENABLED	WCF_GENIL_BOOLEAN	CHAR	1	0	Web Service Enabled
13	MA_ENABLED	☐	WCF_MA_ENABLED	WCF_GENIL_BOOLEAN	CHAR	1	0	Mass Access Enabled
14	RESULT_OBJ_NAME	☐	WCF_RESULT_OBJECT	CRM_OBJEXT_NAME	CHAR	30	0	Result Object Name
15	DYN_MODIFY_CHECK	☐	WCF_DYN_MODIFY_CHECK	GENIL_SUPPORTED	CHAR	1	0	Dynamic Modify Check
16	DYN_DELETE_CHECK	☐	WCF_DYN_DELETE_CHECK	GENIL_SUPPORTED	CHAR	1	0	Dynamic Delete Check
17	DEFER_ATTR_PROPS	☐	WCF_DEFERRED_ATTR_PROPS	WCF_GENIL_BOOLEAN	CHAR	1	0	Deferred Attribute Properties Loading Support
18	OPT_LOCK_SUPPORT	☐	WCF_OPTIMISTIC_LOCK_SUPPORTED	GENIL_NULLABLE_BOOLEAN	CHAR	1	0	Optimistic Lock Supported
19	ASYNC_SAVE_SUPRT	☐	WCF_ASYNC_SAVE_SUPPORTED	GENIL_NULLABLE_BOOLEAN	CHAR	1	0	Asynchronous Save Supported
20	TRANSIENT_OBJECT	☐	WCF_TRANSIENT_OBJECT	WCF_GENIL_BOOLEAN	CHAR	1	0	Checkbox: Transient Object
21	LOCKED_SEPARATLY	☐	WCF_LOCKED_SEPARATELY	WCF_GENIL_BOOLEAN	CHAR	1	0	Entity is Locked Separately
22	NO_ERRORS_ACCEPT	☐	WCF_NO_ERRORS_ACCEPTED	WCF_GENIL_BOOLEAN	CHAR	1	0	No Errors Accepted
23	NO_INSTANCE_SAVE	☐	WCF_NO_INSTANCE_SAVE	WCF_GENIL_BOOLEAN	CHAR	1	0	Saving of an Instance Is Not Supported
24	DIR_CREATE_REQ	☐	WCF_DIR_CREATE_REQ	WCF_GENIL_BOOLEAN	CHAR	1	0	Direct Create Requested
25	NON_UNIQUE_PAR	☐	WCF_NON_UNIQUE_PARENT	WCF_GENIL_BOOLEAN	CHAR	1	0	Non-Unique Parent
26	NO_DIR_ROOT_DEL	☐	WCF_NO_DIR_ROOT_DEL	WCF_GENIL_BOOLEAN	CHAR	1	0	No Direct Root Deletion
27	DYN_CREATE_DATA	☐	GENILT_DYNAMIC_CREATE_DATA	GENIL_DYNAMIC_CREATE_DATA	CHAR	1	0	Creation of BOL Objects to be controlled dynamically
28	.INCLUDE	☐				0	0	Switchframework related fields
29	SWITCH_ID	☐	SFW_SWITCH_ID	SFW_SWITCHID	CHAR	30	0	Id of a Switch in Switch Framework	*
30	REACTION	☐	SFW_SHOWHIDE	SFW_SHOWHIDE	CHAR	1	0	Reaction to Switch
31	SUPER_OBJECT	☐	WCF_SUPER_OBJECT	CRM_OBJEXT_NAME	CHAR	30	0	Super Object
32	OBJECT_NAME_APP	☐	WCF_OBJECT_NAME_APP	CRM_OBJEXT_NAME	CHAR	30	0	Application Data
33	HANDLER_CLASS	☐	WCF_HANDLER_CLASS	SEOCLSNAME	CHAR	30	0	Handler Class

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	WCF_GIL_OBJECTS	COMPONENT	CRMC_GIL_COMP	COMPONENT

History

Last changed by/on	SAP	20141013
SAP Release Created in	701
