SAP ABAP Table WCB_T006_TEXT (Units of Measure + Language)

Hierarchy

☛ EA-GLTRADE (Software Component) SAP Enterprise Extension Global Trade
   ⤷ LO-GT-CHB (Application Component) Chargeback
     ⤷ WCB_AIL (Package) Global Trade Management Application Integration Layer

Basic Data

Table Category	INTTAB	Structure

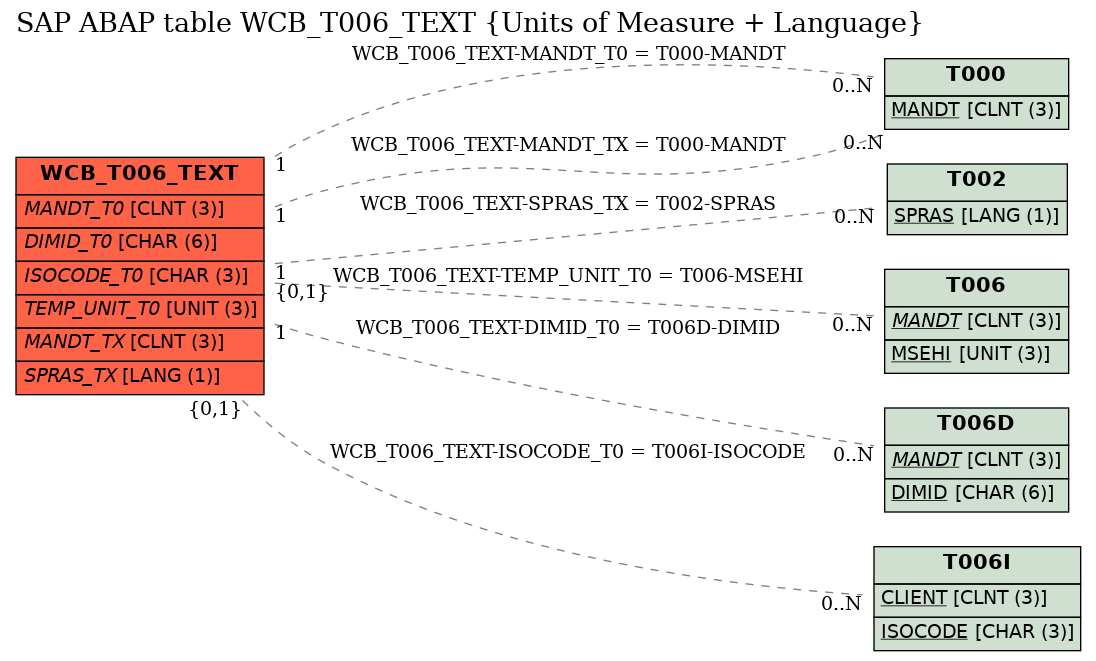

Structure	WCB_T006_TEXT	Table Relationship Diagram
Short Description	Units of Measure + Language

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLU-_T0	☐				0	0	Units of Measurement
2	MANDT_T0	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	MSEHI_T0	☐	MSEHI	MEINS	UNIT	3	0	Unit of Measurement	*
4	KZEX3_T0	☐	KZEX3	X	CHAR	1	0	3-char indicator for external unit of measurement
5	KZEX6_T0	☐	KZEX6	X	CHAR	1	0	6-char. ID for external unit of measurement
6	ANDEC_T0	☐	ANDEC	ANDEC	INT2	5	0	No. of decimal places to which rounding should be performed
7	KZKEH_T0	☐	KZKEH	X	CHAR	1	0	Commercial measurement unit ID
8	KZWOB_T0	☐	KZWOB	X	CHAR	1	0	Value-based commitment indicator
9	KZ1EH_T0	☐	KZ1EH	X	CHAR	1	0	Indicator (1) unit (indicator not yet defined)
10	KZ2EH_T0	☐	KZ2EH	X	CHAR	1	0	Indicator (2) unit (indicator not yet defined)
11	DIMID_T0	☐	DIMID	DIMID	CHAR	6	0	Dimension key	T006D
12	ZAEHL_T0	☐	DZAEHL		INT4	10	0	Numerator for conversion to SI unit
13	NENNR_T0	☐	NENNR		INT4	10	0	Denominator for conversion into SI unit
14	EXP10_T0	☐	EXP10	EXP10	INT2	5	0	base ten exponent for conversion to SI unit
15	ADDKO_T0	☐	ADDKO	ADDKO	DEC	9	6	Additive constant for conversion to SI unit
16	EXPON_T0	☐	EXPON	EXP10	INT2	5	0	Base ten exponent for floating-point display
17	DECAN_T0	☐	DECAN	DECAN	INT2	5	0	Number of decimal places for number display
18	ISOCODE_T0	☐	ISOCD_UNIT	ISOCD_UNIT	CHAR	3	0	ISO code for unit of measurement	T006I
19	PRIMARY_T0	☐	ISOCD_MARK	X	CHAR	1	0	Selection field for conversion from ISO code to int. code
20	TEMP_VALUE_T0	☐	TEMP_VALUE	TEMP_VALUE	FLTP	16	16	Temperature
21	TEMP_UNIT_T0	☐	TEMP_UNIT	MEINS	UNIT	3	0	Temperature unit	T006
22	FAMUNIT_T0	☐	FAMUNIT	CHAR1	CHAR	1	0	Unit of measurement family
23	PRESS_VAL_T0	☐	PRESS_VAL	TEMP_VALUE	FLTP	16	16	Pressure Value
24	PRESS_UNIT_T0	☐	PRESS_UNIT	MEINS	UNIT	3	0	Unit of Pressure	*
25	.INCLU-_TX	☐				0	0	Assign Internal to Language-Dependent Unit
26	MANDT_TX	☐	MANDT	MANDT	CLNT	3	0	Client	T000
27	SPRAS_TX	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
28	MSEHI_TX	☐	MSEHI	MEINS	UNIT	3	0	Unit of Measurement	*
29	MSEH3_TX	☐	MSEH3	MSEH3	CHAR	3	0	External Unit of Measurement in Commercial Format (3-Char.)
30	MSEH6_TX	☐	MSEH6	MSEH6	CHAR	6	0	External Unit of Measurement in Technical Format (6-Char.)
31	MSEHT_TX	☐	MSEHT	TEXT10	CHAR	10	0	Unit of Measurement Text (Maximum 10 Characters)
32	MSEHL_TX	☐	MSEHL	TEXT30	CHAR	30	0	Unit of Measurement Text (Maximum 30 Characters)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	WCB_T006_TEXT	DIMID_T0	T006D	DIMID	REF	1	CN
2	WCB_T006_TEXT	ISOCODE_T0	T006I	ISOCODE	REF	C	CN
3	WCB_T006_TEXT	MANDT_T0	T000	MANDT	KEY	1	CN
4	WCB_T006_TEXT	MANDT_TX	T000	MANDT	KEY	1	CN
5	WCB_T006_TEXT	SPRAS_TX	T002	SPRAS	KEY	1	CN
6	WCB_T006_TEXT	TEMP_UNIT_T0	T006	MSEHI	REF	C	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
