SAP ABAP Table VGN_RTOBJ (Generierte Tabelle zu einem View)
Basic Data
Table Category | VIEW | General view structure |

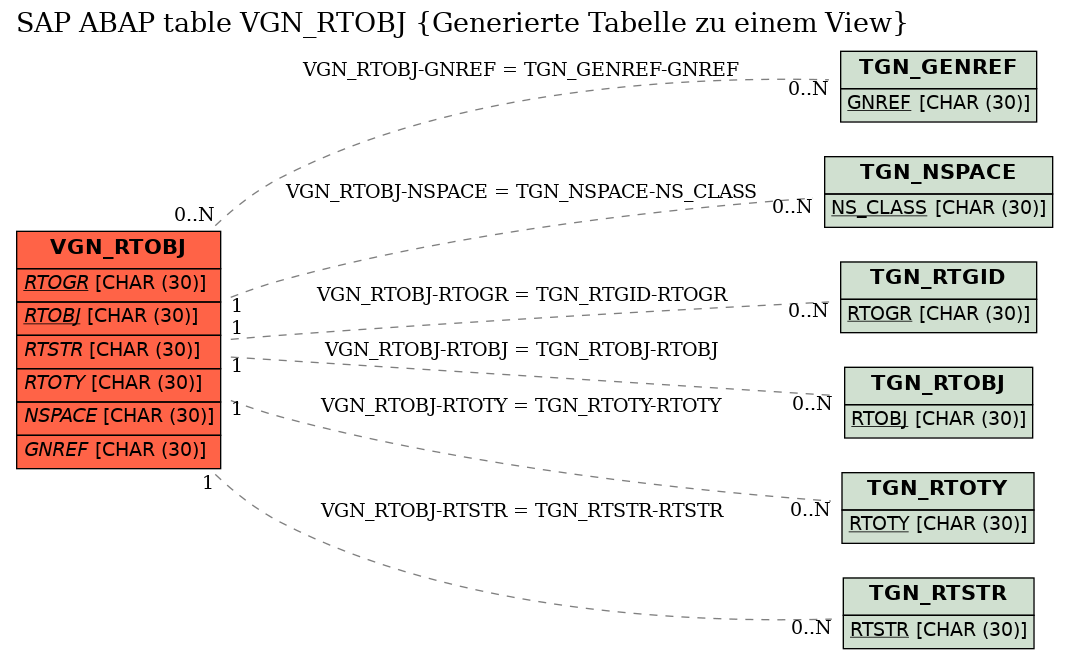

General view structure | VGN_RTOBJ | Table Relationship Diagram |
Short Description | Generierte Tabelle zu einem View |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | RTOGR | GN_RTOGR | GN_RTOGR | CHAR | 30 | 0 | Generator group | TGN_RTGID | |
2 | RTOBJ | GN_RTOBJ | GN_RTOBJ | CHAR | 30 | 0 | Generator | TGN_RTOBJ | |
3 | RTSTR | GN_RTSTR | GN_RTSTR | CHAR | 30 | 0 | Repository | TGN_RTSTR | |
4 | RTOTY | GN_RTOTY | GN_RTOTY | CHAR | 30 | 0 | Runtime object type | TGN_RTOTY | |
5 | INFOFM | GN_INFOFM | FUNCNAME | CHAR | 30 | 0 | Meta-info function module | ||
6 | GENOBJTYPE | GN_GOBJTYP | GN_GOBJTYP | CHAR | 5 | 0 | Meta-info function parameter | ||
7 | SEQNR | GN_SEQNR | GN_SEQNR | NUMC | 3 | 0 | Generation sequence of a generation group | ||
8 | ACTIVE | GN_ACTIVE | GNR_BOOLE | CHAR | 1 | 0 | Generation of the object is allowed (yes/no) | ||
9 | TADIROBJ | GN_TADROBJ | OBJECT | CHAR | 4 | 0 | Tadir object | ||
10 | NOREGEN | GN_NOREGEN | GN_NOREGEN | CHAR | 1 | 0 | Is regeneration of an existing object allowed? | ||
11 | NSPACE | GN_NSCLASS | CLASSNAME | CHAR | 30 | 0 | Namespace class | TGN_NSPACE | |
12 | GNREF | GNREF | GNREF | CHAR | 30 | 0 | Runtime Object Reference | TGN_GENREF |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | VGN_RTOBJ | GNREF | TGN_GENREF | GNREF | |||
2 | VGN_RTOBJ | NSPACE | TGN_NSPACE | NS_CLASS | REF | 1 | CN |
3 | VGN_RTOBJ | RTOBJ | TGN_RTOBJ | RTOBJ | KEY | 1 | CN |
4 | VGN_RTOBJ | RTOGR | TGN_RTGID | RTOGR | KEY | 1 | CN |
5 | VGN_RTOBJ | RTOTY | TGN_RTOTY | RTOTY | KEY | 1 | CN |
6 | VGN_RTOBJ | RTSTR | TGN_RTSTR | RTSTR | KEY | 1 | CN |
History
Last changed by/on | SAP | 20100420 |
SAP Release Created in |
