SAP ABAP Table V_ISSR_ALVGR_PV2 (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

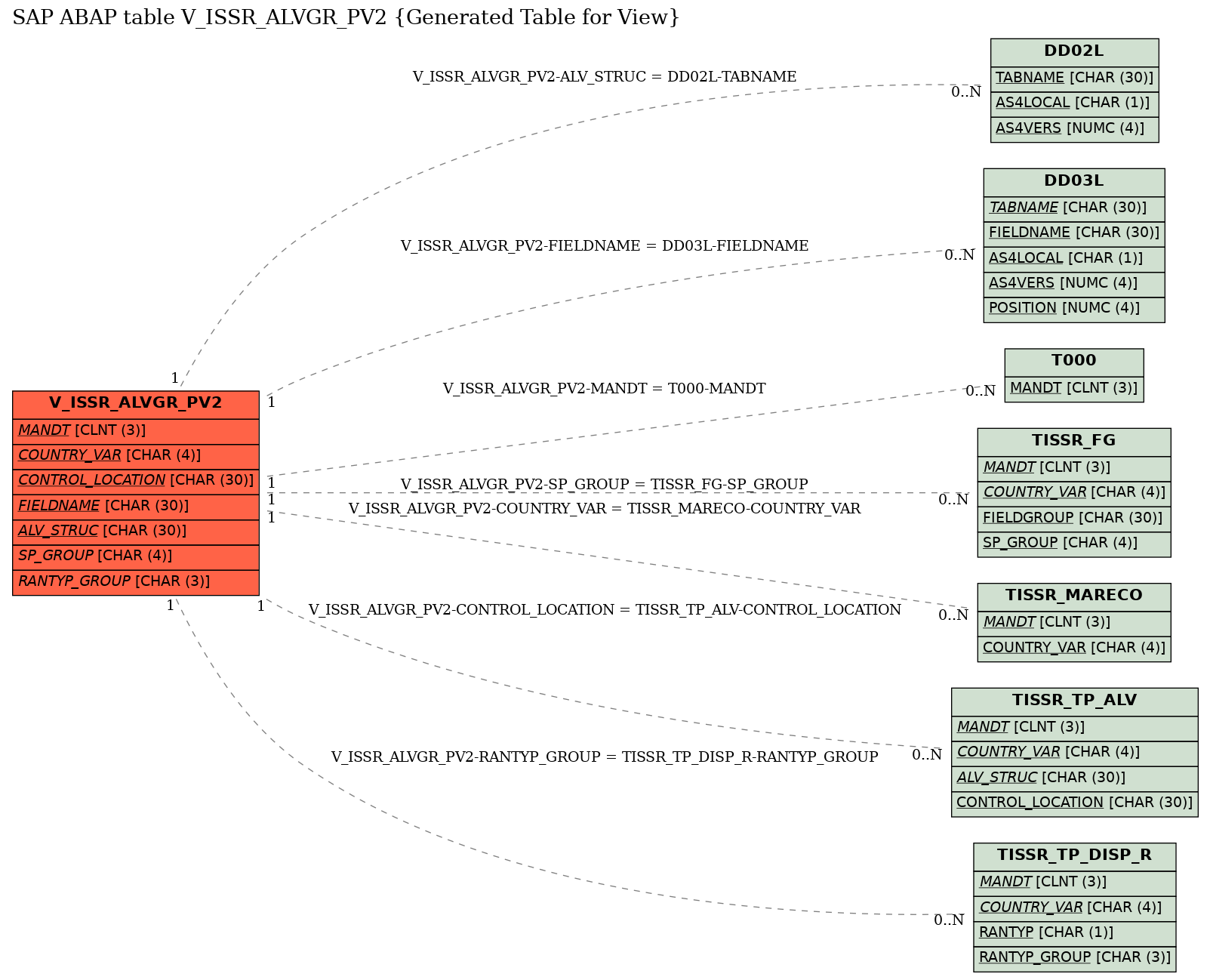

General view structure	V_ISSR_ALVGR_PV2	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	COUNTRY_VAR	☑	ISSR_REP_COUNTRY	ISSR_REP_COUNTRY	CHAR	4	0		TISSR_MARECO
3	CONTROL_LOCATION	☑	ISSR_CONTROL_LOC	ISSR_LOCATION	CHAR	30	0	Bezeichnung der Position des Control-Aufrufs im Programm	TISSR_TP_ALV
4	FIELDNAME	☑	FIELDNAME	FDNAME	CHAR	30	0	Field Name	DD03L
5	ALV_STRUC	☑	ISSR_ALV_STRUC	AS4TAB	CHAR	30	0	ISSR. Name der Struktur zum ALV	DD02L
6	L_KEY	☐	LVC_KEY	CHAR1	CHAR	1	0	ALV control: Key field
7	NO_OUT	☐	LVC_NOOUT	CHAR1	CHAR	1	0	ALV control: Column is not output
8	COL_POS	☐	LVC_COLPOS		INT4	10	0	ALV control: Output column
9	DO_SUM	☐	LVC_DOSUM	XFLAG	CHAR	1	0	ALV control: Aggregate values of column
10	NO_SUM	☐	LVC_NOSUM	XFLAG	CHAR	1	0	ALV control: No aggregation over values of column
11	EMPHASIZE	☐	LVC_EMPHSZ	CHAR4	CHAR	4	0	ALV control: Highlight column with color
12	TIPDDICTXT	☐	LVC_DDICT	CHAR1	CHAR	1	0	ALV control: Determine DDIC text reference
13	SELDDICTXT	☐	LVC_DDICT	CHAR1	CHAR	1	0	ALV control: Determine DDIC text reference
14	SP_GROUP	☐	LVC_SPGRP	CHAR4	CHAR	4	0	Group key	TISSR_FG
15	ICON	☐	LVC_ICON	XFLAG	CHAR	1	0	ALV control: Output as icon
16	OUTPUTLEN	☐	LVC_OUTLEN	DDLENG	NUMC	6	0	ALV control: Column width in characters
17	TECH	☐	LVC_TECH	XFLAG	CHAR	1	0	ALV control: Technical field
18	CHECKBOX	☐	LVC_CHECKB	XFLAG	CHAR	1	0	ALV control: Output as checkbox
19	COLTEXT	☐	LVC_TXTCOL	TEXT40	CHAR	40	0	ALV control: Column heading
20	TOOLTIP	☐	LVC_TIP	TEXT40	CHAR	40	0	ALV control: Tool tip for column header
21	SCRTEXT_L	☐	SCRTEXT_L	SCRTEXT_L	CHAR	40	0	Long Field Label
22	RANTYP_GROUP	☐	ISSR_RTP_GROUP	ISSR_RTP_GROUP	CHAR	3	0	ISSR: RANTYP-Gruppe für Feldsteuerung	TISSR_TP_DISP_R
23	QFIELDNAME	☐	LVC_QFNAME	CHAR30	CHAR	30	0	ALV control: Field name for unit of measure referenced
24	QUANTITY	☐	LVC_QUAN	CHAR3	CHAR	3	0	ALV control: Unit of measure

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	V_ISSR_ALVGR_PV2	ALV_STRUC	DD02L	TABNAME	KEY	1	CN
2	V_ISSR_ALVGR_PV2	CONTROL_LOCATION	TISSR_TP_ALV	CONTROL_LOCATION	KEY	1	CN
3	V_ISSR_ALVGR_PV2	COUNTRY_VAR	TISSR_MARECO	COUNTRY_VAR	KEY	1	CN
4	V_ISSR_ALVGR_PV2	FIELDNAME	DD03L	FIELDNAME	KEY	1	CN
5	V_ISSR_ALVGR_PV2	MANDT	T000	MANDT	KEY	1	CN
6	V_ISSR_ALVGR_PV2	RANTYP_GROUP	TISSR_TP_DISP_R	RANTYP_GROUP	KEY	1	CN
7	V_ISSR_ALVGR_PV2	SP_GROUP	TISSR_FG	SP_GROUP	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
