SAP ABAP Table V_DD05B (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

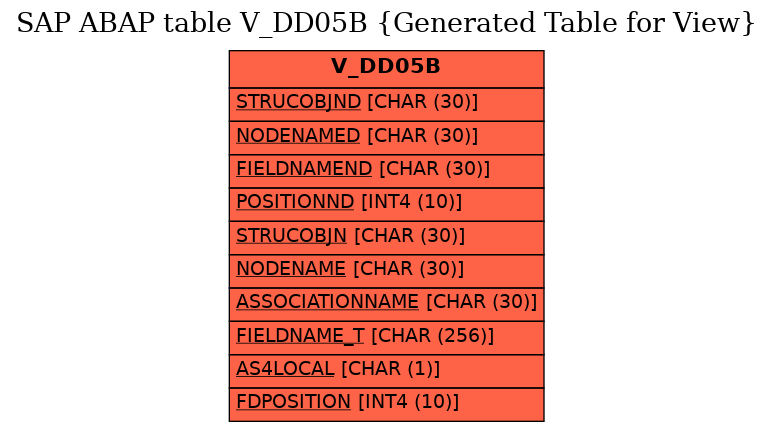

General view structure	V_DD05B	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	STRUCOBJND	☑	DDSTRUCOBJNAME	DDSTRUCOBJNAME	CHAR	30	0	DD: Name of Structured Object (For Example, Entity, Context)
2	NODENAMED	☑	DDNODENAME	DDNODENAME	CHAR	30	0	Node Name of a BO in the ABAP Dictionary
3	FIELDNAMEND	☑	FIELDNAME	FDNAME	CHAR	30	0	Field Name
4	POSITIONND	☑	DDFDPOS	DDFDPOS	INT4	10	0	DD: Marked Position in a Repeat Group
5	STRUCOBJN	☑	DDSTRUCOBJNAME	DDSTRUCOBJNAME	CHAR	30	0	DD: Name of Structured Object (For Example, Entity, Context)
6	NODENAME	☑	DDNODENAME	DDNODENAME	CHAR	30	0	Node Name of a BO in the ABAP Dictionary
7	ASSOCIATIONNAME	☑	DDASSOCIATIONNAME	DDASSOCIATIONNAME	CHAR	30	0	DD: Name of an Association
8	FIELDNAME_T	☑	DDFIELDNAME_L	DDFIELDNAME_L	CHAR	256	0	DD: Concatenated Field Name
9	AS4LOCAL	☑	AS4LOCAL	AS4LOCAL	CHAR	1	0	Activation Status of a Repository Object
10	FDPOSITION	☑	DDFDPOS	DDFDPOS	INT4	10	0	DD: Marked Position in a Repeat Group
11	NODENAME_S	☐	DDNODENAME_S	DDNODENAME	CHAR	30	0	DD: Node name if source field comes from a different node
12	FIELDNAME	☐	DDFIELDNAME_L	DDFIELDNAME_L	CHAR	256	0	DD: Concatenated Field Name
13	IF_NAME	☐	PROGNAME	PROGNAME	CHAR	40	0	ABAP Program Name
14	IF_ATTRIBUT	☐	DDIFATTRIBUT	DDIFATTRIBUT	CHAR	250	0	DD: Interface Attribute (for Association Constants)
15	OPERATOR	☐	VSOPERATOR	VSOPERATOR	CHAR	2	0	Operator in a Join Condition
16	UP_NODENAME_S	☐	DDNODENAME_S	DDNODENAME	CHAR	30	0	DD: Node name if source field comes from a different node
17	UP_FIELDNAME	☐	DDFIELDNAME_L	DDFIELDNAME_L	CHAR	256	0	DD: Concatenated Field Name
18	UP_IF_NAME	☐	PROGNAME	PROGNAME	CHAR	40	0	ABAP Program Name
19	UP_IF_ATTRIBUT	☐	DDIFATTRIBUT	DDIFATTRIBUT	CHAR	250	0	DD: Interface Attribute (for Association Constants)
20	ABAP_SYSTEM_VAR	☐	DDABAPSYSTVAR	DDABAPSYSTVAR	CHAR	61	0	DD: ABAP system variable as field in an association
21	UP_OPERATOR	☐	VSOPERATOR	VSOPERATOR	CHAR	2	0	Operator in a Join Condition
22	SIDE_INFO	☐	DDSIDEINFO		CHAR	2	0	DD: Information on Origin of Fields (Source/Target)
23	DATATYPE	☐	DATATYPE_D	DATATYPE	CHAR	4	0	Data Type in ABAP Dictionary
24	LENG	☐	DDLENG	DDLENG	NUMC	6	0	Length (No. of Characters)
25	DECIMALS	☐	DECIMALS	DDLENG	NUMC	6	0	Number of Decimal Places

History

Last changed by/on	SAP	20141013
SAP Release Created in
