SAP ABAP Table UIDCLOREPR (UI Documents: Attributes of Outgoing Relationships of LOIOs)
Hierarchy
SEM-BW (Software Component) SEM-BW: Strategic Enterprise Management
   FIN-SEM-BIC (Application Component) Business Information Collection
     UI (Package) SEM-BIC
Basic Data
Table Category TRANSP    Transparent table

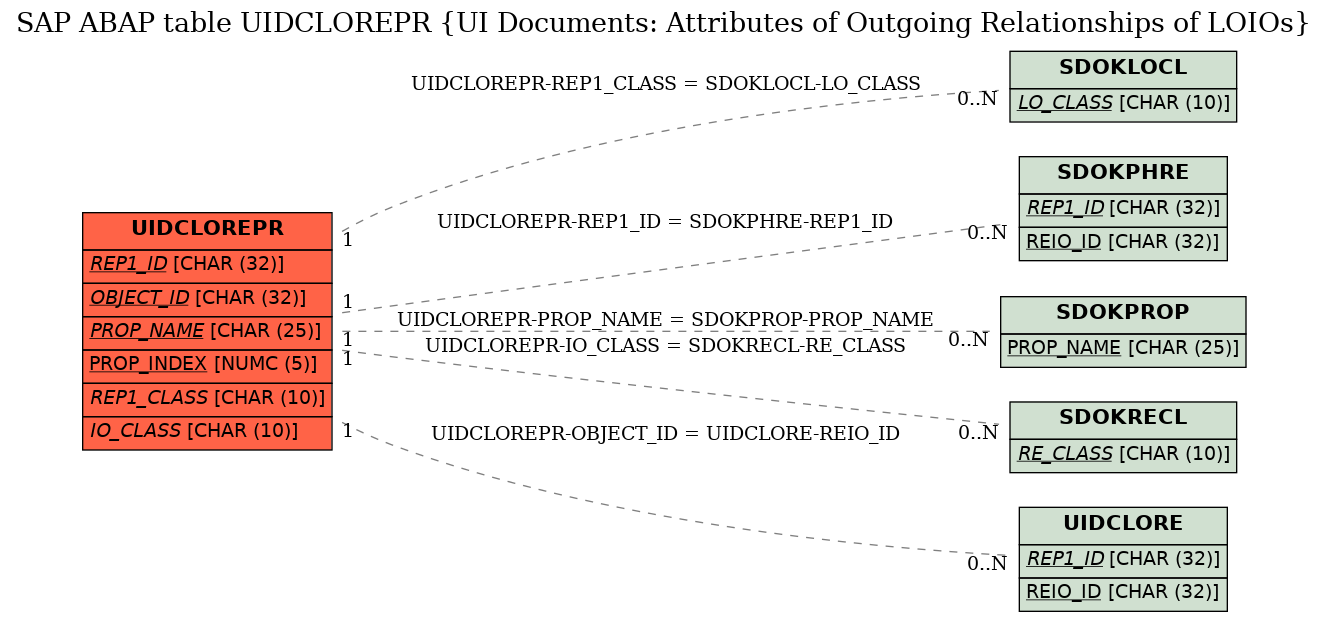

Transparent table UIDCLOREPR   Table Relationship Diagram
Short Description UI Documents: Attributes of Outgoing Relationships of LOIOs
Delivery and Maintenance
Pool/cluster
Delivery Class E   Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type
Length Decimal
Places
Short Description Check
table
1 REP1_ID SDOK_LOID SDOK_DOCID CHAR 32   0   Logical document SDOKPHRE
2 OBJECT_ID SDOK_REID SDOK_DOCID CHAR 32   0   Relationship between logical and physical documents UIDCLORE
3 PROP_NAME SDOK_PROPN SDOK_PROPN CHAR 25   0   Attribute of a document or a relationship SDOKPROP
4 PROP_INDEX SDOK_INDX SYNUM05 NUMC 5   0   KPro: General counter (uniqueness in DB)
5 REP1_CLASS SDOK_CLASS SDOK_CLASS CHAR 10   0   Document class SDOKLOCL
6 IO_CLASS SDOK_RECL SDOK_CLASS CHAR 10   0   Relationship class SDOKRECL
7 PROP_VALUE SDOK_PROPV SDOK_PROPV CHAR 64   0   Attribute Value
8 PROP_SECI SDOK_PROPI SDOK_PROPI CHAR 12   0   Attribute feature (shortened)
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 UIDCLOREPR IO_CLASS SDOKRECL RE_CLASS REF 1 CN
2 UIDCLOREPR OBJECT_ID UIDCLORE REIO_ID KEY 1 CN
3 UIDCLOREPR PROP_NAME SDOKPROP PROP_NAME KEY 1 CN
4 UIDCLOREPR REP1_CLASS SDOKLOCL LO_CLASS REF 1 CN
5 UIDCLOREPR REP1_ID SDOKPHRE REP1_ID KEY 1 CN
History
Last changed by/on SAP  20041006
SAP Release Created in 3.1A
