SAP ABAP Table UIDCLOPR (UI Documents: Attribute Values of Logical Information Object)

Hierarchy

☛ SEM-BW (Software Component) SEM-BW: Strategic Enterprise Management
   ⤷ FIN-SEM-BIC (Application Component) Business Information Collection
     ⤷ UI (Package) SEM-BIC

Basic Data

Table Category	TRANSP	Transparent table

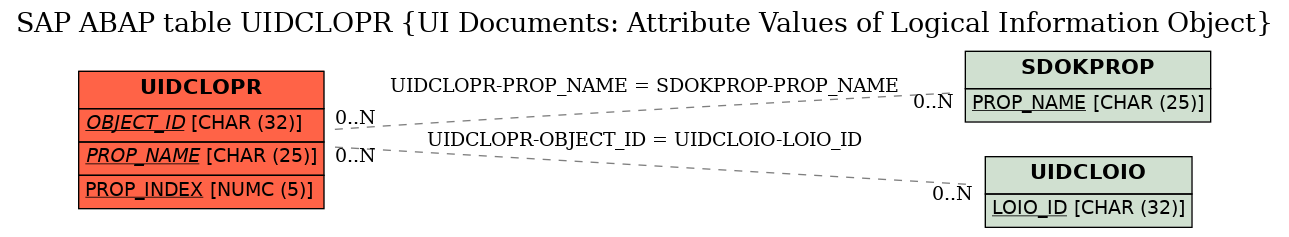

Transparent table	UIDCLOPR	Table Relationship Diagram
Short Description	UI Documents: Attribute Values of Logical Information Object

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_ID	☑	SDOK_DOCID	SDOK_DOCID	CHAR	32	0	ID for documents and relations	UIDCLOIO
2	PROP_NAME	☑	SDOK_PROPN	SDOK_PROPN	CHAR	25	0	Attribute of a document or a relationship	SDOKPROP
3	PROP_INDEX	☑	SDOK_INDX	SYNUM05	NUMC	5	0	KPro: General counter (uniqueness in DB)
4	IO_CLASS	☐	SDOK_CLASS	SDOK_CLASS	CHAR	10	0	Document class	*
5	PROP_VALUE	☐	SDOK_PROPV	SDOK_PROPV	CHAR	64	0	Attribute Value
6	PROP_SECI	☐	SDOK_PROPI	SDOK_PROPI	CHAR	12	0	Attribute feature (shortened)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	UIDCLOPR	OBJECT_ID	UIDCLOIO	LOIO_ID	KEY	CN
2	UIDCLOPR	PROP_NAME	SDOKPROP	PROP_NAME	KEY	CN

History

Last changed by/on	SAP	20041006
SAP Release Created in	3.1A
