SAP ABAP Table UCS0400 (Statusbearing Rep.Groups for Interunit Level 10)
Hierarchy
☛
SEM-BW (Software Component) SEM-BW: Strategic Enterprise Management
⤷ FIN-SEM-BCS (Application Component) Business Consolidation
⤷ UCS0 (Package) SEM-BCS: Status Management, Tasks, ...
⤷ FIN-SEM-BCS (Application Component) Business Consolidation
⤷ UCS0 (Package) SEM-BCS: Status Management, Tasks, ...
Basic Data
Table Category | TRANSP | Transparent table |

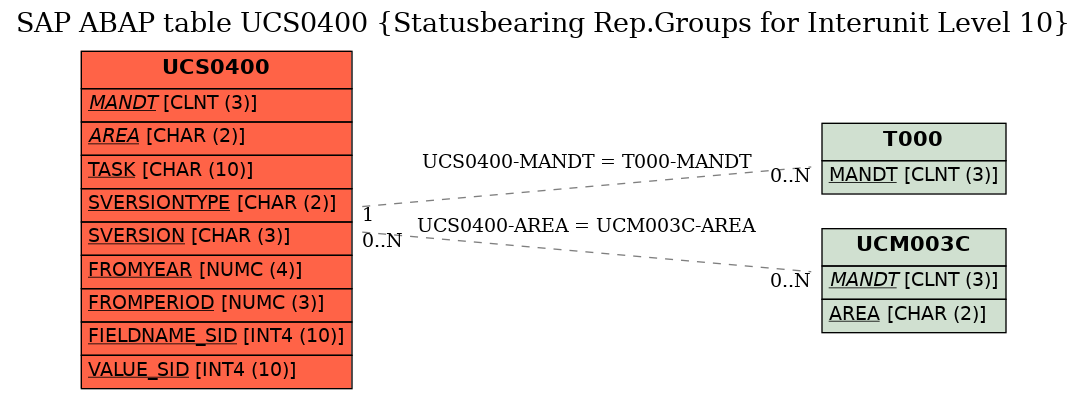

Transparent table | UCS0400 | Table Relationship Diagram |
Short Description | Statusbearing Rep.Groups for Interunit Level 10 |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | L | Table for storing temporary data, delivered empty |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
2 | AREA | UC_AREA | UC_AREA | CHAR | 2 | 0 | Consolidation Area | UCM003C | |
3 | TASK | UC_TASK | UC_TASK | CHAR | 10 | 0 | Task | * | |
4 | SVERSIONTYPE | UC_SVERSIONTYPE | UC_SVERSIONTYPE | CHAR | 2 | 0 | SEM-BCS: Field Type of Special Version | ||
5 | SVERSION | UC_SVERSION | UC_SVERSION | CHAR | 3 | 0 | SEM-BCS: Special Version | * | |
6 | FROMYEAR | UG_FROMYEAR | UG_FISCYEAR_INV | NUMC | 4 | 0 | Effective from Fiscal Year | ||
7 | FROMPERIOD | UG_FROMPERIOD | UG_FISCPERIOD_INV | NUMC | 3 | 0 | Effective from Period | ||
8 | FIELDNAME_SID | UC_SID | UG_SID | INT4 | 10 | 0 | Surrogate ID | * | |
9 | VALUE_SID | UC_SID | UG_SID | INT4 | 10 | 0 | Surrogate ID | * | |
10 | STBFLG | UC_FLG | UC_FLG | CHAR | 1 | 0 | General indicator, SAP Consolidation |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | UCS0400 | AREA | UCM003C | AREA | |||
2 | UCS0400 | MANDT | T000 | MANDT | KEY | 1 | CN |
History
Last changed by/on | SAP | 20041006 |
SAP Release Created in | 3.1B |
