SAP ABAP Table UCF6040 (C/I: Document Types for Calculation Base)

Hierarchy

☛ SEM-BW (Software Component) SEM-BW: Strategic Enterprise Management
   ⤷ FIN-SEM-BCS (Application Component) Business Consolidation
     ⤷ UCF6 (Package) SEM-BCS: Consolidation of Investments

Basic Data

Table Category	TRANSP	Transparent table

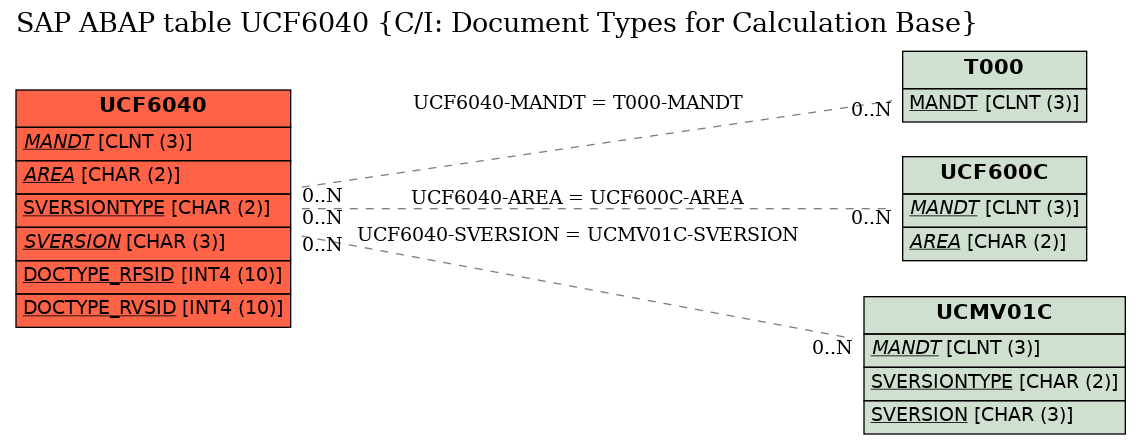

Transparent table	UCF6040	Table Relationship Diagram
Short Description	C/I: Document Types for Calculation Base

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	AREA	☑	UC_AREA	UC_AREA	CHAR	2	0	Consolidation Area	UCF600C
3	SVERSIONTYPE	☑	UC_SVERSIONTYPE	UC_SVERSIONTYPE	CHAR	2	0	SEM-BCS: Field Type of Special Version
4	SVERSION	☑	UC_SVERSION	UC_SVERSION	CHAR	3	0	SEM-BCS: Special Version	UCMV01C
5	DOCTYPE_RFSID	☑	UG_FIELDNAME_SID	UG_SID	INT4	10	0	FIN Master Data: SID of Field Names	*
6	DOCTYPE_RVSID	☑	UG_SID	UG_SID	INT4	10	0	FIN Master Data: Surrogate ID	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	UCF6040	AREA	UCF600C	AREA
2	UCF6040	MANDT	T000	MANDT
3	UCF6040	SVERSION	UCMV01C	SVERSION

History

Last changed by/on	SAP	20041006
SAP Release Created in	3.1B
