SAP ABAP Table TPT_SCR_AREA_FCT (Assign Field Catalog to Screen Area)

Hierarchy

☛ SAP_HRRXX (Software Component) Sub component SAP_HRRXX of SAP_HR
   ⤷ PT (Application Component) Personnel Time Management
     ⤷ PT_FIELD_SELECTION (Package) Field selection

Basic Data

Table Category	TRANSP	Transparent table

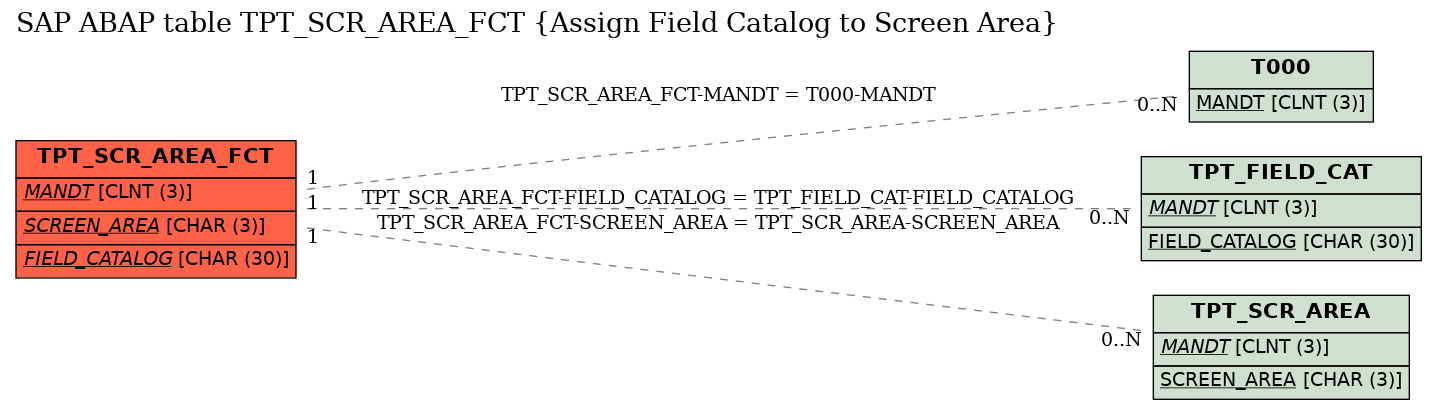

Transparent table	TPT_SCR_AREA_FCT	Table Relationship Diagram
Short Description	Assign Field Catalog to Screen Area

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	SCREEN_AREA	☑	PT_SCREEN_AREA	PT_SCREEN_AREA	CHAR	3	0	Screen Area	TPT_SCR_AREA
3	FIELD_CATALOG	☑	PT_FIELD_CATALOG		CHAR	30	0	Field Catalog	TPT_FIELD_CAT

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	TPT_SCR_AREA_FCT	FIELD_CATALOG	TPT_FIELD_CAT	FIELD_CATALOG	KEY	1	CN
2	TPT_SCR_AREA_FCT	MANDT	T000	MANDT	KEY	1	CN
3	TPT_SCR_AREA_FCT	SCREEN_AREA	TPT_SCR_AREA	SCREEN_AREA	KEY	1	CN

History

Last changed by/on	SAP	20000201
SAP Release Created in
