SAP ABAP Table T5EG4 (Features of non-exempt amount model)
Hierarchy
☛
SAP_HRCES (Software Component) Sub component SAP_HRCES of SAP_HR
⤷ PA-PA-ES (Application Component) Spain
⤷ PB04 (Package) HR Master Data: Spain
⤷ PA-PA-ES (Application Component) Spain
⤷ PB04 (Package) HR Master Data: Spain
Basic Data
Table Category | TRANSP | Transparent table |

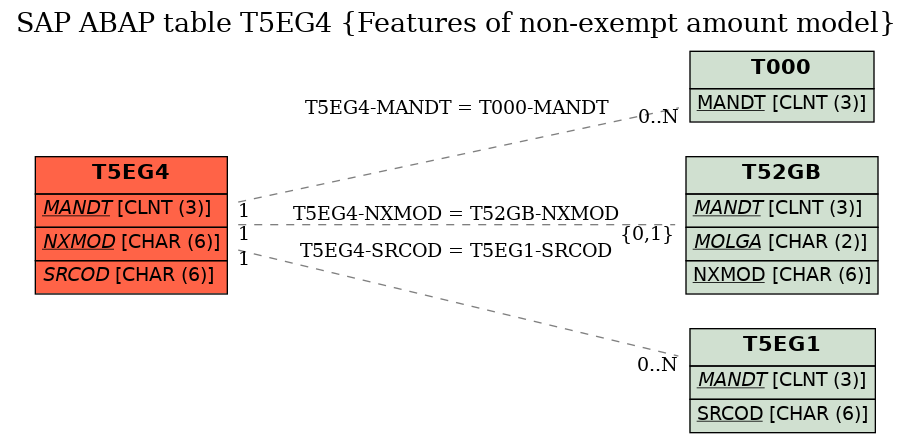

Transparent table | T5EG4 | Table Relationship Diagram |
Short Description | Features of non-exempt amount model |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | C | Customizing table, maintenance only by cust., not SAP import |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
2 | NXMOD | P_NXMOD | P_NXMOD | CHAR | 6 | 0 | Code for the non-exempt amount model | T52GB | |
3 | NXIDE | PES_NXIDE | XFELD | CHAR | 1 | 0 | The exemption calculation result is the exempt amount | ||
4 | NXIDN | PES_NXIDN | XFELD | CHAR | 1 | 0 | The exemption calculation result is the non-exempt amount | ||
5 | NXLTP | PES_NXLTP | PES_PERCNT | DEC | 5 | 2 | Percentage limit of non-exempt amount calculation | ||
6 | NXUNP | PES_NXUNP | PES_NXUNP | CHAR | 1 | 0 | Percentage value unit in the non-exempt amount calculation | ||
7 | NXLTF | PES_NXLTF | PES_NXFCUR | CURR | 9 | 2 | Flat amount in calculation of non-exempt amount | ||
8 | NXLTD | PES_NXLTD | PES_NXDCUR | CURR | 9 | 2 | Amount per dependent in the garnishable calculation | ||
9 | NXEXD | PES_NXEXD | PES_NXEXD | NUMC | 2 | 0 | Number of dependents excluded from the calculation | ||
10 | NXUNA | PES_NXUNA | PES_NXUNA | CHAR | 1 | 0 | Amount unit in the non-exempt amount calculation | ||
11 | NXREL | PES_NXREL | PES_NXREL | CHAR | 1 | 0 | Relation between percentage and amount | ||
12 | SRCOD | PES_SRCOD | PES_SRCOD | CHAR | 6 | 0 | Code for special rule | T5EG1 |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | T5EG4 | MANDT | T000 | MANDT | KEY | 1 | CN |
2 | T5EG4 | NXMOD | T52GB | NXMOD | KEY | 1 | C |
3 | T5EG4 | SRCOD | T5EG1 | SRCOD | REF | 1 | CN |
History
Last changed by/on | SAP | 20081217 |
SAP Release Created in |
