SAP ABAP Table SOCMV_SBTM_CHECK (Generated Table for View)
Basic Data
| Table Category | VIEW | General view structure |
| General view structure | SOCMV_SBTM_CHECK |

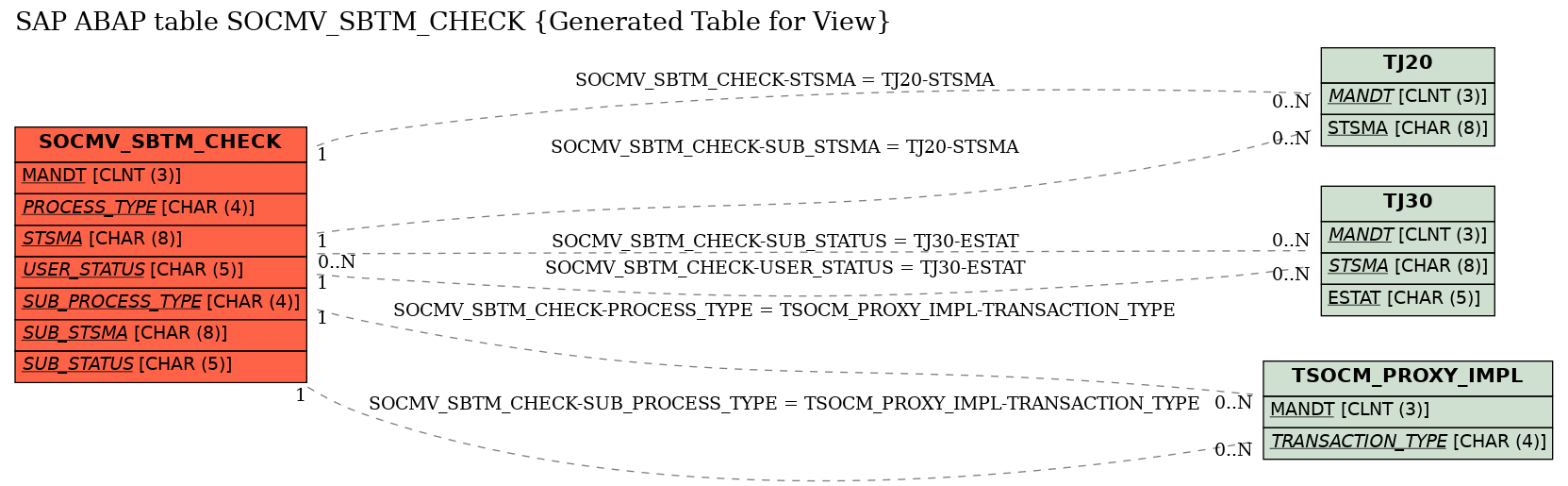

Table Relationship Diagram
|
| Short Description | Generated Table for View |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | ||
| Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  MANDT |
MANDT | MANDT | CLNT | 3 | 0 | Client | ||
| 2 | PROCESS_TYPE |
CRMT_PROCESS_TYPE | CRM_PROCESS_TYPE | CHAR | 4 | 0 | Business Transaction Type | TSOCM_PROXY_IMPL | |
| 3 | STSMA |
J_STSMA | J_STSMA | CHAR | 8 | 0 | Status Profile | TJ20 | |
| 4 | USER_STATUS |
J_ESTAT | J_ESTAT | CHAR | 5 | 0 | User Status | TJ30 | |
| 5 | SUB_PROCESS_TYPE |
SBTM_PROCESS_TYPE_SOCM | CRM_PROCESS_TYPE | CHAR | 4 | 0 | Procedure Type to be Sampled | TSOCM_PROXY_IMPL | |
| 6 | SUB_STSMA |
J_STSMA | J_STSMA | CHAR | 8 | 0 | Status Profile | TJ20 | |
| 7 | SUB_STATUS |
SBTM_ESTAT_SOCM | J_ESTAT | CHAR | 5 | 0 | Required Min. Status | TJ30 |
Foreign Keys
| |
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right |
|---|---|---|---|---|---|---|---|
 |
|
|
|
|
|
|
|
| 1 | SOCMV_SBTM_CHECK | PROCESS_TYPE |  TSOCM_PROXY_IMPL |
TRANSACTION_TYPE |
KEY | 1 | CN |
| 2 | SOCMV_SBTM_CHECK | STSMA | TJ20 |
STSMA |
KEY | 1 | CN |
| 3 | SOCMV_SBTM_CHECK | SUB_PROCESS_TYPE | TSOCM_PROXY_IMPL |
TRANSACTION_TYPE |
KEY | 1 | CN |
| 4 | SOCMV_SBTM_CHECK | SUB_STATUS | TJ30 |
ESTAT |
|||
| 5 | SOCMV_SBTM_CHECK | SUB_STSMA | TJ20 |
STSMA |
KEY | 1 | CN |
| 6 | SOCMV_SBTM_CHECK | USER_STATUS | TJ30 |
ESTAT |
KEY | 1 | CN |
History
| Last changed by/on | SAP | 20111123 |
| SAP Release Created in |
