SAP ABAP Table RSXCLS_S_HEADERINFO (Xcelsius Header Information)

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-BEX-ET (Application Component) End User Technology
     ⤷ RS_XCLS_INT (Package) Business Object Excelsius Integration

Basic Data

Table Category	INTTAB	Structure

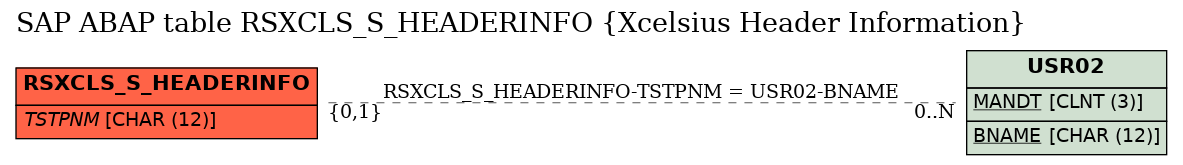

Structure	RSXCLS_S_HEADERINFO	Table Relationship Diagram
Short Description	Xcelsius Header Information

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	TECHNAME	☐	RS_XCLS_TECHNAME	RS_XCLS_NAME	CHAR	30	0	Technical name of the Xcelsius Object
2	OBJVERS	☐	RSOBJVERS	RSOBJVERS	CHAR	1	0	Object version
3	VERSION	☐	RSZVERSION	INT4	INT4	10	0	Version of the reporting component
4	TYPE	☐	RS_XCLS_TYPE	RS_XCLS_TYPE	NUMC	2	0	Type of Object
5	UPGRADE_DONE	☐	RS_BOOL	RS_BOOL	CHAR	1	0	Boolean
6	TIMECREATED	☐	RSTIMESTMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
7	TSTPNM	☐	RSTSTPNM	XUBNAME	CHAR	12	0	Last changed by	USR02
8	TIMESTMP	☐	RSTIMESTMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
9	OBJSTAT	☐	RSOBJSTAT	RSOBJSTAT	CHAR	3	0	Object Status
10	CONTREL	☐	RSCONTREL	CHAR6	CHAR	6	0	Content release
11	CONTTIMESTMP	☐	RSCONTTIMESTMP	TZNTSTMPS	DEC	15	0	Content time stamp: Last modification to the object by SAP
12	OWNER	☐	RSOWNER	XUBNAME	CHAR	12	0	Owner (Person Responsible)	*
13	BWAPPL	☐	RSBWAPPL		CHAR	10	0	BW Application (Namespace)
14	LANGU	☐	SYLANGU	SYLANGU	LANG	1	0	Language Key
15	TITLE	☐	RSTXT255	TEXT255	CHAR	255	0	Descriptive Text, 255 Characters long
16	INIT_BEX_VALUES	☐	RS_BOOL	RS_BOOL	CHAR	1	0	Boolean
17	SWF_CACHE_ALLOW	☐	RS_BOOL	RS_BOOL	CHAR	1	0	Boolean

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RSXCLS_S_HEADERINFO	TSTPNM	USR02	BNAME	KEY	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	702
