SAP ABAP Table RSRHINTAB_OLAP ((obsolete) Hierarchy interval for the OLAP /XPRA -> 7.40 rel)
Hierarchy
☛
SAP_BW (Software Component) SAP Business Warehouse
⤷
BW-BEX-OT (Application Component) OLAP Technology
⤷
RSR_HIER (Package) OLAP Hierarchy - Services
SAP_BW (Software Component) SAP Business Warehouse⤷
BW-BEX-OT (Application Component) OLAP Technology⤷
RSR_HIER (Package) OLAP Hierarchy - Services
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | RSRHINTAB_OLAP |

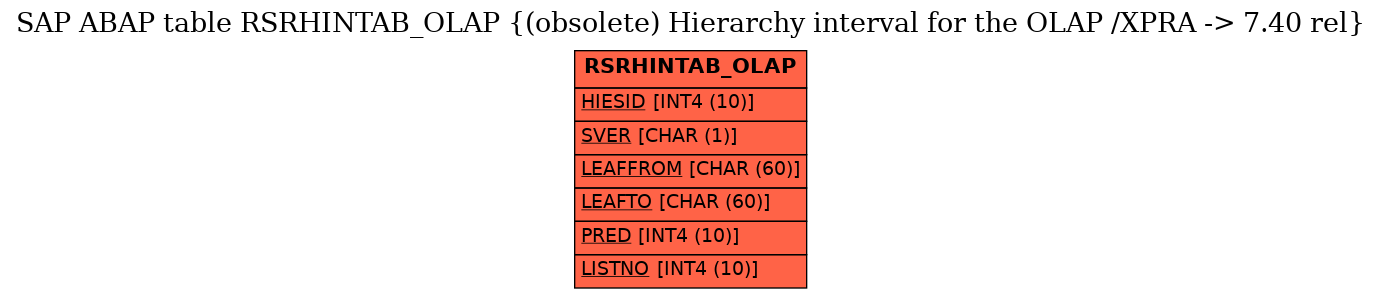

Table Relationship Diagram
|
| Short Description | (obsolete) Hierarchy interval for the OLAP /XPRA -> 7.40 rel |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | A | Application Table (Master- and Transaction Data) |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  HIESID |
RSRHIESID | RSSID | INT4 | 10 | 0 | SID for Hierarchy ID | ||
| 2 | SVER |
RSRSVER | CHAR1 | CHAR | 1 | 0 | Version in Inclusion Table Key | ||
| 3 | LEAFFROM |
RSCHAVL60 | RSCHAVL60 | CHAR | 60 | 0 | Dim: Field for a Characteristic Value Shorter Than 60 Char. | ||
| 4 | LEAFTO |
RSCHAVL60 | RSCHAVL60 | CHAR | 60 | 0 | Dim: Field for a Characteristic Value Shorter Than 60 Char. | ||
| 5 | PRED |
RSSID | RSSID | INT4 | 10 | 0 | Master data ID | ||
| 6 | LISTNO |
RSRLISTNO | INT4 | 10 | 0 | Sequence of the inclusion relationships | |||
| 7 | TLEVEL |
RSTLEVEL | RSTLEVEL | NUMC | 2 | 0 | Level of a hierarchy node | ||
| 8 | FACTOR |
RSRFACTOR | INT4 | INT4 | 10 | 0 | Factor, with which the incl. name goes into the node |
History
| Last changed by/on | SAP | 20140117 |
| SAP Release Created in |
