SAP ABAP Table RSRD_ER_DOCLAY (Exception Report: Definition of Layout (XML Conversion))

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-BEX-ET (Application Component) End User Technology
     ⤷ RSRD (Package) BW: Broadcasting

Basic Data

Table Category	TRANSP	Transparent table

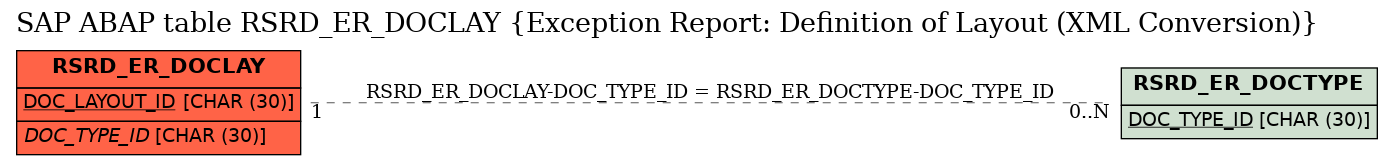

Transparent table	RSRD_ER_DOCLAY	Table Relationship Diagram
Short Description	Exception Report: Definition of Layout (XML Conversion)

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	DOC_LAYOUT_ID	☑	RSRD_ER_DOC_LAYOUT_ID	RSRD_ER_DOC_LAYOUT_ID	CHAR	30	0	ID of a Layout for an Exception Report
2	DOC_TYPE_ID	☐	RSRD_ER_DOC_TYPE_ID	CHAR30	CHAR	30	0	ID of a Document Type in Exception Reporting	RSRD_ER_DOCTYPE
3	CONVERSION_TYPE	☐	RSRD_XML_CONVERSION_TYPE	RSRD_XML_CONVERSION_TYPE	CHAR	10	0	Type of XML Conversion
4	CONVERSION_ID	☐	RSRD_XML_CONVERSION_ID	CHAR40	CHAR	40	0	ID for XML Conversion (e.g. ID of an XSLT Transformation)
5	CONVERSION_PAR	☐	RSRD_XML_CONVERSION_PAR	RSRD_XML_CONVERSION_PAR	STRG	0	0	Parameter for XML Conversion (name1=value&name2=value2)
6	MIME_TYPE	☐	RSRD_MIME_TYPE	W3_CONTTYP	CHAR	128	0	MIME Type in the Broadcasting Framework
7	FILE_EXTENSION	☐	TEXT10	TEXT10	CHAR	10	0	Text (10 Characters)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RSRD_ER_DOCLAY	DOC_TYPE_ID	RSRD_ER_DOCTYPE	DOC_TYPE_ID	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
