SAP ABAP Table RSR_CACHE_VARSH (Cache Directory: Storage for Variables and Hierarchies)

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-BEX-OT (Application Component) OLAP Technology
     ⤷ RSR_CACHE (Package) BW: Reporting Processor Cache

Basic Data

Table Category	TRANSP	Transparent table

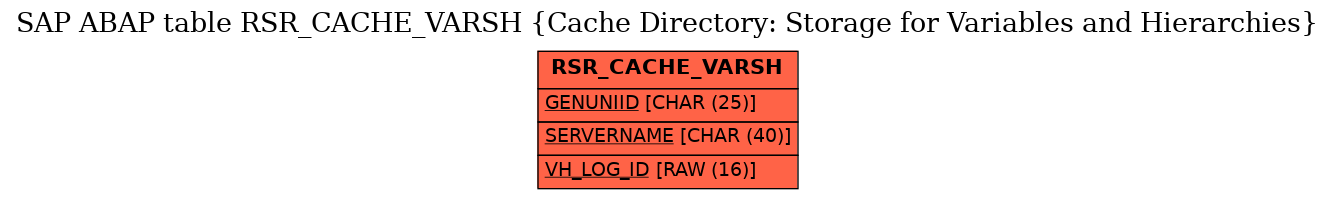

Transparent table	RSR_CACHE_VARSH	Table Relationship Diagram
Short Description	Cache Directory: Storage for Variables and Hierarchies

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	GENUNIID	☑	RSGENUNIID	RSRREPDIR_SYSUUID_25	CHAR	25	0	Internal display of the report identifier
2	SERVERNAME	☑	MSNAME2	MSNAME2	CHAR	40	0	Application Server Instance
3	VH_LOG_ID	☑	RSRCB_LOG_ID	SYSUUID	RAW	16	0	Logical ID
4	VH_HASH	☐			RAW	20	0
5	CREATE_STAMP	☐	RSTIMESTMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
6	SRDATE	☐	RRSRDATE	RSDATE	DATS	8	0	Date with which texts, attributes and hierarchies are read
7	CGID	☐	RRCGID	INT4	INT4	10	0	Partitioning Group Regarding Cache
8	CSID	☐	RRCSID	INT4	INT4	10	0	ID for Constant Selection
9	DATA_SIZE	☐	RSRCA_INT		INT4	10	0	Integer
10	VARSH_XSTRING	☐			RSTR	0	0
11	DELETE_FLAG	☐	RS_BOOL	RS_BOOL	CHAR	1	0	Boolean

History

Last changed by/on	SAP	20141013
SAP Release Created in	740
