SAP ABAP Table RSPLFB_S_SRV_BAPIRET2 (Bapiret2 with Information on Localizing Errors)

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-PLA (Application Component) Planning
     ⤷ RSPLFB (Package) Planning Service Builder

Basic Data

Table Category	INTTAB	Structure

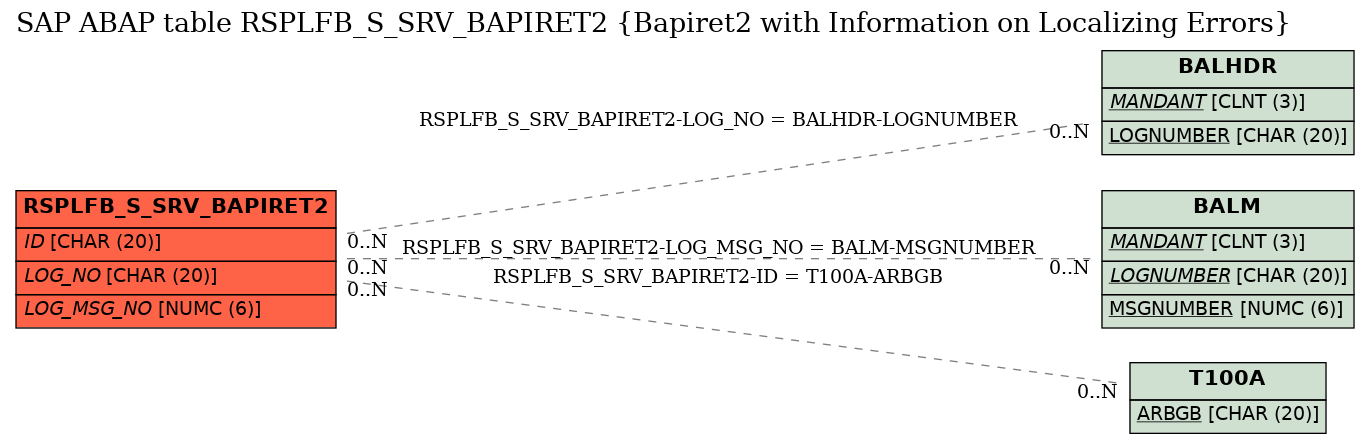

Structure	RSPLFB_S_SRV_BAPIRET2	Table Relationship Diagram
Short Description	Bapiret2 with Information on Localizing Errors

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	RULEPOS	☐	RSPLF_RULEPOS		INT4	10	0	Rule Position (ID) in Planning Function
2	PARNM	☐	RSPLF_PARNM		CHAR	20	0	Parameter Name
3	COMPNM	☐	RSPLF_PARNM		CHAR	20	0	Parameter Name
4	PARAM_INDX	☐	RSPLF_INDX		INT4	10	0	Line Index
5	CU_CONTEXT	☐	RSPLF_CU_CONTEXT	RS_BOOL	CHAR	1	0	Message Context: Characteristic Usage
6	TYPE	☐	BAPI_MTYPE	SYCHAR01	CHAR	1	0	Message type: S Success, E Error, W Warning, I Info, A Abort
7	ID	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	T100A
8	NUMBER	☐	SYMSGNO	SYMSGNO	NUMC	3	0	Message Number
9	MESSAGE	☐	BAPI_MSG	TEXT220	CHAR	220	0	Message Text
10	LOG_NO	☐	BALOGNR	BALOGNR	CHAR	20	0	Application log: log number	BALHDR
11	LOG_MSG_NO	☐	BALMNR	BALMNR	NUMC	6	0	Application log: Internal message serial number	BALM
12	MESSAGE_V1	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
13	MESSAGE_V2	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
14	MESSAGE_V3	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
15	MESSAGE_V4	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
16	PARAMETER	☐	BAPI_PARAM	SWC_ELEM	CHAR	32	0	Parameter Name
17	ROW	☐	BAPI_LINE	INT4	INT4	10	0	Lines in parameter
18	FIELD	☐	BAPI_FLD	FDNAME	CHAR	30	0	Field in parameter	*
19	SYSTEM	☐	BAPILOGSYS	LOGSYS	CHAR	10	0	Logical system from which message originates	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RSPLFB_S_SRV_BAPIRET2	ID	T100A	ARBGB
2	RSPLFB_S_SRV_BAPIRET2	LOG_MSG_NO	BALM	MSGNUMBER
3	RSPLFB_S_SRV_BAPIRET2	LOG_NO	BALHDR	LOGNUMBER

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
