SAP ABAP Table RSOSJOIN (BW Search: Join Information of Affected TLOGO Tables)

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-WHM-MTD (Application Component) Metadata (Repository)
     ⤷ RSOSN (Package) BW Search on SAP HANA

Basic Data

Table Category	TRANSP	Transparent table

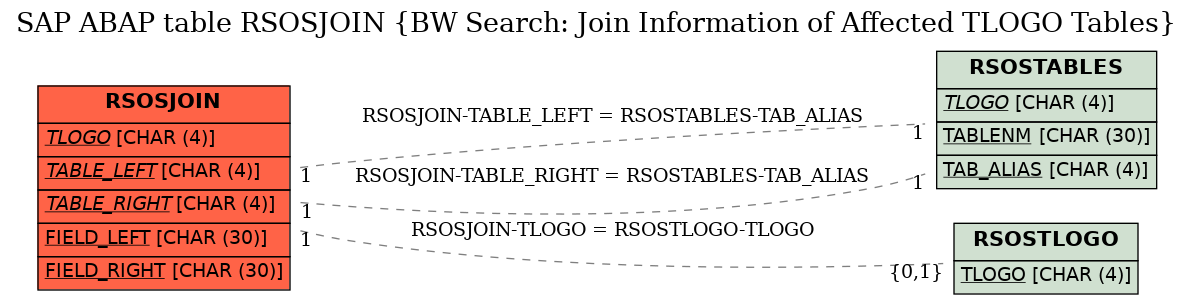

Transparent table	RSOSJOIN	Table Relationship Diagram
Short Description	BW Search: Join Information of Affected TLOGO Tables

Delivery and Maintenance

Pool/cluster
Delivery Class	W	System table, contents transportable via separate TR objects
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	TLOGO	☑	RSOSNTLOGO	RSOSNTLOGO	CHAR	4	0	BW Search TLOGO Objects	RSOSTLOGO
2	TABLE_LEFT	☑	RSOSALIAS		CHAR	4	0	Alias Name	RSOSTABLES
3	TABLE_RIGHT	☑	RSOSALIAS		CHAR	4	0	Alias Name	RSOSTABLES
4	FIELD_LEFT	☑	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
5	FIELD_RIGHT	☑	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
6	POSIT	☐	INT4	INT4	INT4	10	0	Natural number
7	JOIN_TYPE	☐	RSOSJOINTP	RSOSJOINTP	CHAR	1	0	Join Type
8	CARDINALITY	☐	RSOSCARDINALITY	RSOSCARDINALITY	CHAR	1	0	Join Cardinality
9	LANGUAGE_COLUMN	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RSOSJOIN	TABLE_LEFT	RSOSTABLES	TAB_ALIAS	KEY	1	1
2	RSOSJOIN	TABLE_RIGHT	RSOSTABLES	TAB_ALIAS	KEY	1	1
3	RSOSJOIN	TLOGO	RSOSTLOGO	TLOGO	KEY	1	C

History

Last changed by/on	SAP	20141013
SAP Release Created in	740
