SAP ABAP Table RSDRHTREXBUFFER (LRU-Buffer for the Hierarchy Processing)

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-BEX-OT (Application Component) OLAP Technology
     ⤷ RSDRC (Package) Data Manager InfoProvider Read Access

Basic Data

Table Category	TRANSP	Transparent table

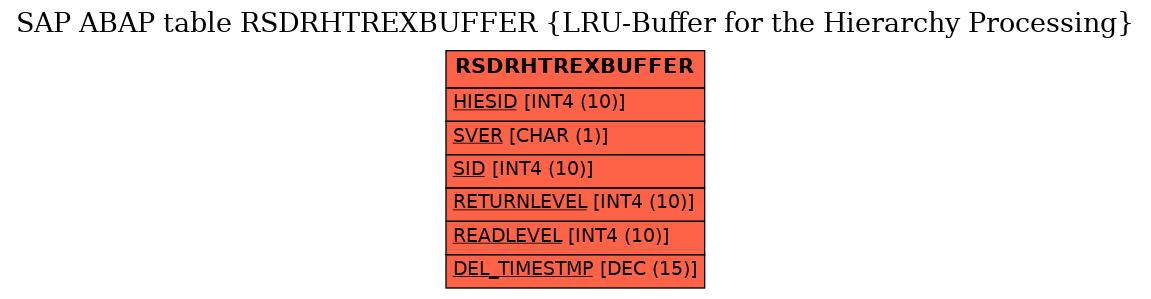

Transparent table	RSDRHTREXBUFFER	Table Relationship Diagram
Short Description	LRU-Buffer for the Hierarchy Processing

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	structure: Buffer for the Hierarchy Processing (KEY columns)
2	HIESID	☑	RSSID	RSSID	INT4	10	0	Master data ID
3	SVER	☑	RSRSVER	CHAR1	CHAR	1	0	Version in Inclusion Table Key
4	SID	☑	RSSID	RSSID	INT4	10	0	Master data ID
5	RETURNLEVEL	☑	RRRETURNLEVEL	RRLEVEL	INT4	10	0	Level difference of return level for NODELEVEL
6	READLEVEL	☑	RRREADLEVEL	RRLEVEL	INT4	10	0	Level, in aggregation
7	DEL_TIMESTMP	☑	RSDRH_TIMESTMP_DEL	TZNTSTMPS	DEC	15	0	Time stamp when entry was marked as deleted in this table
8	.INCLUDE	☐				0	0	structure: Buffer for the Hierarchy Processing
9	TABLNM	☐	TABNAME	AS4TAB	CHAR	30	0	Table Name	*
10	TIMESTMP	☐	RSDRH_TIMESTMP_VALID_LAST	TZNTSTMPS	DEC	15	0	Time stamp when entry validated last
11	LOCK_CNT	☐	INT4	INT4	INT4	10	0	Natural number
12	CREATE_TIMESTMP	☐	RSDRH_TIMESTMP_CREATE	TZNTSTMPS	DEC	15	0	Creation Time Stamp of Hierarchy
13	REST_NODE_INCLUDED	☐	RS_BOOL	RS_BOOL	CHAR	1	0	Boolean
14	CREATE_BUFENTRY_TIMESTMP	☐	RSDRH_TIMESTMP_CREATE_BUFFER	TZNTSTMPS	DEC	15	0	Creation Time Stamp of Buffer Entry

History

Last changed by/on	SAP	20141013
SAP Release Created in	700
