SAP ABAP Table RSDRCUB (Directory of Relational Cubes, Catalogs, Schemas)
Hierarchy
☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-WHM-MTD (Application Component) Metadata (Repository)
     ⤷ RSD (Package) BW: Data Basis InfoObjects and Core Services
Basic Data
Table Category TRANSP    Transparent table
Transparent table RSDRCUB   Table Relationship Diagram
Short Description Directory of Relational Cubes, Catalogs, Schemas
Delivery and Maintenance
Pool/cluster
Delivery Class E   Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance X   Display/Maintenance Allowed
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 RCUB_NAME RSINFOCUBE RSINFOCUBE CHAR 30   0   InfoCube
2 OBJVERS RSOBJVERS RSOBJVERS CHAR 1   0   Object version
3 TYPE RSDRCUBTYPE RSDRCUBTYPE CHAR 1   0   Type of Entry in Directory RDRCUB (Catalog, Schema...)
4 RCUB_UUID SYSUUID_25 SYSUUID_25 CHAR 25   0   UUID in compressed form
5 NAME_PARENT RSINFOCUBE RSINFOCUBE CHAR 30   0   InfoCube
6 SYSTEM_ID     CHAR 30   0
7 .INCLUDE       0   0   Properties TLOGO object (available in A and M versions)
8 .INCLUDE       0   0   Properties TLOGO object (only available in A version)
9 OBJSTAT RSOBJSTAT RSOBJSTAT CHAR 3   0   Object Status
10 CONTREL RSCONTREL CHAR6 CHAR 6   0   Content release
11 CONTTIMESTMP RSCONTTIMESTMP TZNTSTMPS DEC 15   0   Content time stamp: Last modification to the object by SAP
12 OWNER RSOWNER XUBNAME CHAR 12   0   Owner (Person Responsible) *
13 BWAPPL RSBWAPPL   CHAR 10   0   BW Application (Namespace)
14 ACTIVFL RSACTIVFL XFELD CHAR 1   0   Active and revised version do not agree
15 .INCLUDE       0   0   Include: Last changed by, time stamp in internal format
16 TSTPNM RSTSTPNM XUBNAME CHAR 12   0   Last changed by USR02
17 TIMESTMP RSTIMESTMP TZNTSTMPS DEC 15   0   UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

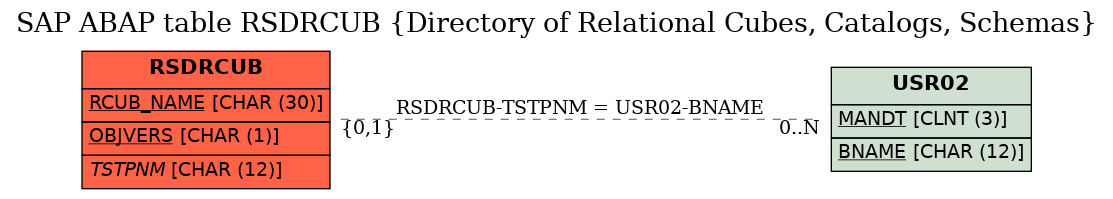

Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 RSDRCUB TSTPNM USR02 BNAME KEY C CN
History
Last changed by/on SAP  20090304
SAP Release Created in 400
