SAP ABAP Table RSDRACOLDIM (Relational Cube: Columns Dimension Association)
Hierarchy
☛
SAP_BW (Software Component) SAP Business Warehouse
⤷
BW-WHM-MTD (Application Component) Metadata (Repository)
⤷
RSD (Package) BW: Data Basis InfoObjects and Core Services
SAP_BW (Software Component) SAP Business Warehouse⤷
BW-WHM-MTD (Application Component) Metadata (Repository)⤷
RSD (Package) BW: Data Basis InfoObjects and Core Services
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | RSDRACOLDIM |

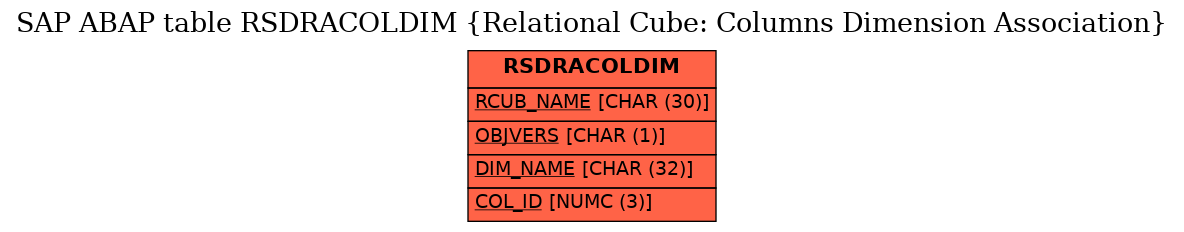

Table Relationship Diagram
|
| Short Description | Relational Cube: Columns Dimension Association |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | E | Control table, SAP and customer have separate key areas |
| Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  RCUB_NAME |
RSINFOCUBE | RSINFOCUBE | CHAR | 30 | 0 | InfoCube | ||
| 2 | OBJVERS |
RSOBJVERS | RSOBJVERS | CHAR | 1 | 0 | Object version | ||
| 3 | DIM_NAME |
RRTDIMUNAM | RRTDIMUNAM | CHAR | 32 | 0 | Unique name of dimension (dimension unique name) | ||
| 4 | COL_ID |
NUMC3 | NUMC3 | NUMC | 3 | 0 | Numc3, internal use | ||
| 5 | POSIT |
RSPOSIT | AS4POS | NUMC | 4 | 0 | Position of the Field in the Structure / Table |
History
| Last changed by/on | SAP | 20090331 |
| SAP Release Created in | 400 |
