SAP ABAP Table RSDMHSITAB740 (Model table: Conversion of hierarchy nodes - SID)
Hierarchy
☛
SAP_BW (Software Component) SAP Business Warehouse
⤷
BW-WHM-MTD (Application Component) Metadata (Repository)
⤷
RSD (Package) BW: Data Basis InfoObjects and Core Services
SAP_BW (Software Component) SAP Business Warehouse⤷
BW-WHM-MTD (Application Component) Metadata (Repository)⤷
RSD (Package) BW: Data Basis InfoObjects and Core Services
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | RSDMHSITAB740 |

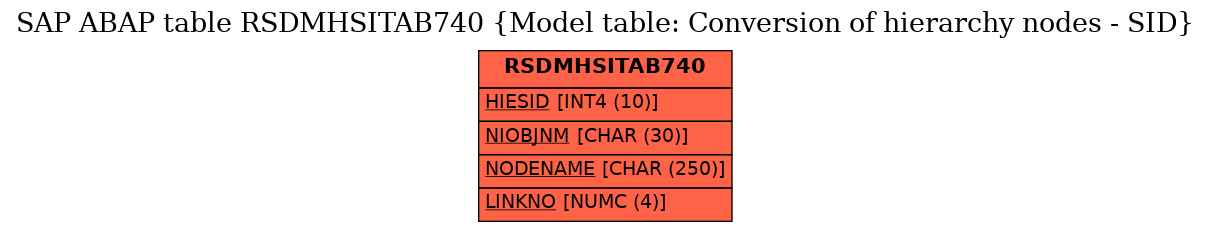

Table Relationship Diagram
|
| Short Description | Model table: Conversion of hierarchy nodes - SID |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | A | Application Table (Master- and Transaction Data) |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  HIESID |
RSRHIESID | RSSID | INT4 | 10 | 0 | SID for Hierarchy ID | ||
| 2 | NIOBJNM |
RSNIOBJNM | RSIOBJNM | CHAR | 30 | 0 | InfoObject type of the node | ||
| 3 | NODENAME |
RSSHNODENAME_MAXLEN | RSCHAVL_MAXLEN | CHAR | 250 | 0 | Name of the Hierarchy Node (Max. Length) | ||
| 4 | LINKNO |
RSRLLINKNO | NUMC4 | NUMC | 4 | 0 | Link number | ||
| 5 | SID |
RSHISID | RSSID | INT4 | 10 | 0 | SID of the node within the hierarchy | ||
| 6 | OSID |
RSHOSID | RSSID | INT4 | 10 | 0 | SID of the node as original characteristic value |
History
| Last changed by/on | SAP | 20130604 |
| SAP Release Created in | 740 |
