SAP ABAP Table RSDLTABLES (Database Table Selected for DB Link in BW)
Hierarchy
☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-WHM-DST (Application Component) Data Staging
     ⤷ RSDL (Package) BW: DB Connect - SDK Connect
Basic Data
Table Category TRANSP    Transparent table

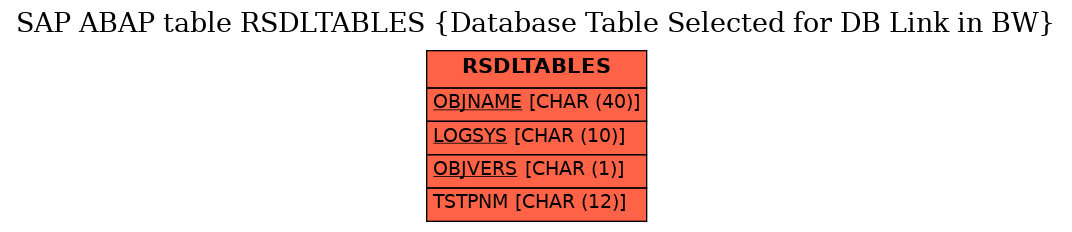

Transparent table RSDLTABLES   Table Relationship Diagram
Short Description Database Table Selected for DB Link in BW
Delivery and Maintenance
Pool/cluster
Delivery Class C   Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance X   Display/Maintenance Allowed
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 OBJNAME SOBJ_NAME SOBJ_NAME CHAR 40   0   Object Name in Object Directory
2 LOGSYS RSSLOGSYS LOGSYS CHAR 10   0   Source system *
3 OBJVERS RSOBJVERS RSOBJVERS CHAR 1   0   Object version
4 CON_NAME DBCON_NAME DBCON_NAME CHAR 30   0   Logical name for a database connection *
5 DBMS DBCON_DBMS DBCON_DBMS CHAR 3   0   Database system
6 .INCLUDE       0   0   Include: Last changed by, date, time
7 TSTPNM RSTSTPNM XUBNAME CHAR 12   0   Last changed by *
8 TSTPDAT RSTSTPDAT AS4DATE DATS 8   0   Changed On
9 TSTPTIM RSTSTPTIM AS4TIME TIMS 6   0   Changed at
History
Last changed by/on SAP  20141013
SAP Release Created in 30A
