SAP ABAP Table RSDG_S_AFIXXL (XXL Attribute (Dialog))

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-WHM-MTD (Application Component) Metadata (Repository)
     ⤷ RSD (Package) BW: Data Basis InfoObjects and Core Services

Basic Data

Table Category	INTTAB	Structure
Structure	RSDG_S_AFIXXL	Table Relationship Diagram
Short Description	XXL Attribute (Dialog)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Master data XXL attributes
2	CHABASNM	☐	RSCHABASNM	RSCHABASNM	CHAR	30	0	Reference characteristic	RSDCHABAS
3	OBJVERS	☐	RSOBJVERS	RSOBJVERS	CHAR	1	0	Object version
4	ATTRINM	☐	RSXXLATTRINM	FDNAME	CHAR	30	0	XXL Attribute	*
5	VERSICON	☐	ICON_TEXT	SYCHAR132	CHAR	132	0	Carrier field for icons
6	CHANM	☐	RSCHANM	RSIOBJNM	CHAR	30	0	Characteristic
7	NTXTSH	☐	RSDNTXTSH	TEXT20	CHAR	20	0	Navigation attribute short text
8	NTXTLG	☐	RSDNTXTLG	TEXT60	CHAR	60	0	Navigation attribute description
9	MARK	☐	BOOLE_D	BOOLE	CHAR	1	0	Data element for domain BOOLE: TRUE (='X') and FALSE (=' ')

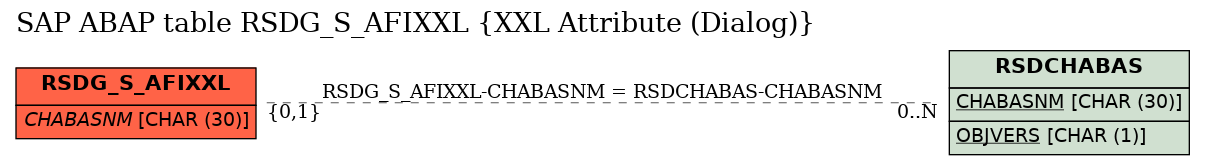

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RSDG_S_AFIXXL	CHABASNM	RSDCHABAS	CHABASNM	KEY	C

History

Last changed by/on	SAP	20141013
SAP Release Created in	740
