SAP ABAP Table RSDD_LM_S_RETMSG (TLOGO Framework Message Structure)

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-BEX-OT (Application Component) OLAP Technology
     ⤷ RSDD_LM (Package) Lean Modeler

Basic Data

Table Category	INTTAB	Structure

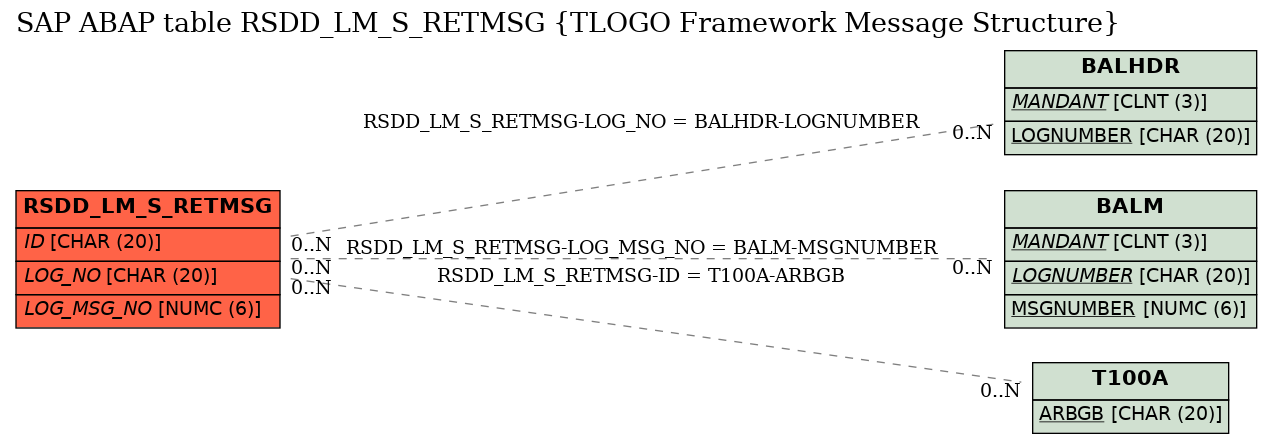

Structure	RSDD_LM_S_RETMSG	Table Relationship Diagram
Short Description	TLOGO Framework Message Structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Return Parameter
2	TYPE	☐	BAPI_MTYPE	SYCHAR01	CHAR	1	0	Message type: S Success, E Error, W Warning, I Info, A Abort
3	ID	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	T100A
4	NUMBER	☐	SYMSGNO	SYMSGNO	NUMC	3	0	Message Number
5	MESSAGE	☐	BAPI_MSG	TEXT220	CHAR	220	0	Message Text
6	LOG_NO	☐	BALOGNR	BALOGNR	CHAR	20	0	Application log: log number	BALHDR
7	LOG_MSG_NO	☐	BALMNR	BALMNR	NUMC	6	0	Application log: Internal message serial number	BALM
8	MESSAGE_V1	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
9	MESSAGE_V2	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
10	MESSAGE_V3	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
11	MESSAGE_V4	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
12	PARAMETER	☐	BAPI_PARAM	SWC_ELEM	CHAR	32	0	Parameter Name
13	ROW	☐	BAPI_LINE	INT4	INT4	10	0	Lines in parameter
14	FIELD	☐	BAPI_FLD	FDNAME	CHAR	30	0	Field in parameter	*
15	SYSTEM	☐	BAPILOGSYS	LOGSYS	CHAR	10	0	Logical system from which message originates	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RSDD_LM_S_RETMSG	ID	T100A	ARBGB
2	RSDD_LM_S_RETMSG	LOG_MSG_NO	BALM	MSGNUMBER
3	RSDD_LM_S_RETMSG	LOG_NO	BALHDR	LOGNUMBER

History

Last changed by/on	SAP	20130604
SAP Release Created in	730
