SAP ABAP Table RSD_SGPAR_ODSO (ODS Object Dialog: Parameter Toolbar)
Hierarchy
☛
SAP_BW (Software Component) SAP Business Warehouse
⤷
BW-WHM-MTD (Application Component) Metadata (Repository)
⤷
RSD (Package) BW: Data Basis InfoObjects and Core Services
SAP_BW (Software Component) SAP Business Warehouse⤷
BW-WHM-MTD (Application Component) Metadata (Repository)⤷
RSD (Package) BW: Data Basis InfoObjects and Core Services
Basic Data
| Table Category | INTTAB | Structure |
| Structure | RSD_SGPAR_ODSO |

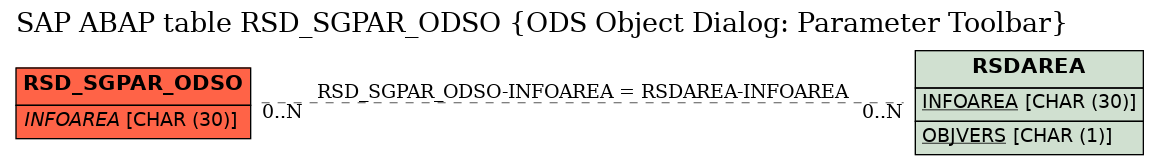

Table Relationship Diagram
|
| Short Description | ODS Object Dialog: Parameter Toolbar |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | ||
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  OBJNM |
RSDGOBJNM | CHAR30 | CHAR | 30 | 0 | General object name | ||
| 2 | REFNM |
RSDODSOBJECT | RSDODSOBJECT | CHAR | 30 | 0 | DataStore Object | ||
| 3 | WRKMOD |
RSWRKMOD | RSWRKMOD | CHAR | 20 | 0 | Editing Type | ||
| 4 | OBJVERS |
RSOBJVERS | RSOBJVERS | CHAR | 1 | 0 | Object version | ||
| 5 | INFOAREA |
RSINFOAREA | RSINFOAREA | CHAR | 30 | 0 | InfoArea | RSDAREA | |
| 6 | BWAPPL |
RSBWAPPL | CHAR | 10 | 0 | BW Application (Namespace) | |||
| 7 | BCTCOMP |
RSOBCTCOMP | CHAR | 10 | 0 | Obsolete - Replaced by Switches - Do Not Delete | |||
| 8 | TXTLG |
RSTXTLG | TEXT60 | CHAR | 60 | 0 | Long description | ||
| 9 | BEXFL |
RSDBEXFL | RSDBEXFL | CHAR | 1 | 0 | SID Generation |
Foreign Keys
| |
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right |
|---|---|---|---|---|---|---|---|
 |
|
|
|
|
|
|
|
| 1 | RSD_SGPAR_ODSO | INFOAREA |  RSDAREA |
INFOAREA |
History
| Last changed by/on | SAP | 20130604 |
| SAP Release Created in | 20B |
