SAP ABAP Table RSBOLAP_DT_S_KEY_FIGURE (Design Time Key Figure)

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-BEX-ET (Application Component) End User Technology
     ⤷ RSBOLAP_BICS_PROVIDER (Package) BICS Provider

Basic Data

Table Category	INTTAB	Structure

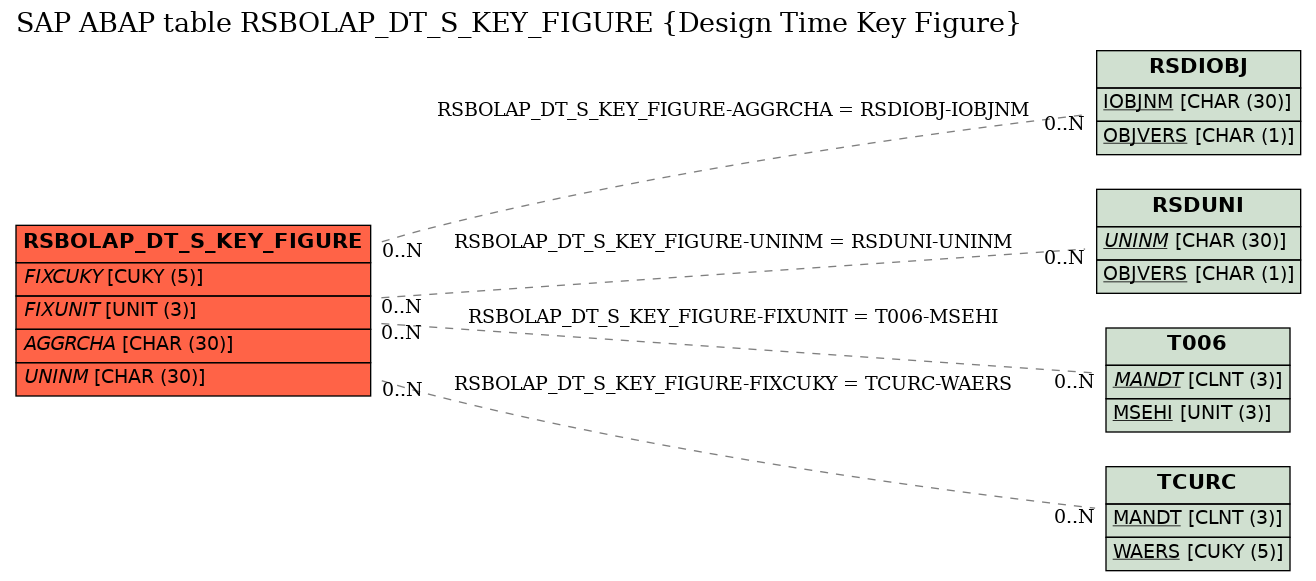

Structure	RSBOLAP_DT_S_KEY_FIGURE	Table Relationship Diagram
Short Description	Design Time Key Figure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	NAME	☐	RSBOLAP_OBJECT_NAME	RSBOLAP_OBJECT_NAME	CHAR	40	0	Object Name
2	TEXT	☐	RSBOLAP_OBJECT_TEXT	RSBOLAP_OBJECT_TEXT	CHAR	60	0	Charact. text
3	DATA_TYPE	☐	DATATYPE_D	DATATYPE	CHAR	4	0	Data Type in ABAP Dictionary
4	INTLEN	☐	RSDINTLEN	DDLENG	NUMC	6	0	Internal Length of InfoObjects in BW - see Docu
5	OUTPUTLEN	☐	OUTPUTLEN	DDLENG	NUMC	6	0	Output Length
6	DECIMALS	☐	DECIMALS	DDLENG	NUMC	6	0	Number of Decimal Places
7	.INCLUDE	☐				0	0	DDIC Interface: Properties of a key figure
8	KYFTP	☐	RSKYFTP	RSKYFTP	CHAR	3	0	Key figure type
9	NCUMFL	☐	RSNCUMFL	RSNCUMFL	CHAR	1	0	Non-cumulative value (flag)
10	FIXCUKY	☐	RSFIXCUKY	WAERS	CUKY	5	0	Fixed currency	TCURC
11	FIXUNIT	☐	RSFIXUNIT	MEINS	UNIT	3	0	Fixed Unit of Measure	T006
12	AGGRGEN	☐	RSDAGGRGEN	RSDAGGRGEN	CHAR	3	0	Usual Aggregation
13	AGGREXC	☐	RSDAGGREXC	RSDAGGREXC	CHAR	3	0	Exception Aggregation
14	AGGRCHA	☐	RSAGGRCHA	RSIOBJNM	CHAR	30	0	Reference characteristic for exception aggregation	RSDIOBJ
15	.INCLUDE	☐				0	0	Reporting attributes key figure
16	KYFDECIM	☐	RSKYFDECIM	RSKYFDECIM	CHAR	1	0	Decimal places (of a key figure)
17	KYFPRSNT	☐	RSKYFPRSNT	RSKYFPRSNT	CHAR	1	0	Display (of a key figure)
18	KYFNAV	☐	RSKYFNAV	RSKYFNAV	CHAR	1	0	Navigation indicator for key figures
19	UNINM	☐	RSUNINM	RSIOBJNM	CHAR	30	0	Unit InfoObject (currency/unit)	RSDUNI
20	DOMANM	☐	DOMNAME	DOMNAME	CHAR	30	0	Domain name	*
21	PACKFL	☐	RSDHIGHPRECFL	RS_BOOL	CHAR	1	0	Process key figure with high precision
22	KYFSEMANTIC	☐	RSDKYFSEMANTIC	RSDKYFSEMANTIC	CHAR	1	0	Semantic of a Key Figure
23	STOCK_COVER_CALCTYPE	☐	RSDSTOCK_COVER_CALCTYPE	RSDSTOCK_COVER_CALCTYPE	CHAR	1	0	Type of Stock used by Stock Coverage Calculation
24	STOCK_COVER_PERIODS	☐	RSDSTOCK_COVER_PERIODS	RSDSTOCK_COVER_PERIODS	INT4	10	0	Number of Stock Cover Periods to be calculated

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RSBOLAP_DT_S_KEY_FIGURE	AGGRCHA	RSDIOBJ	IOBJNM	REF
2	RSBOLAP_DT_S_KEY_FIGURE	FIXCUKY	TCURC	WAERS
3	RSBOLAP_DT_S_KEY_FIGURE	FIXUNIT	T006	MSEHI
4	RSBOLAP_DT_S_KEY_FIGURE	UNINM	RSDUNI	UNINM	REF

History

Last changed by/on	SAP	20141013
SAP Release Created in	740
