SAP ABAP Table PIQ_ISR_HELP (Field String for Monitor Input Help)
Hierarchy
☛
IS-PS-CA (Software Component) IS-PUBLIC SECTOR CONTRACT ACCOUNTING
⤷
IS-HER-CM-AD (Application Component) Administration
⤷
PMIQ (Package) Campus Management
IS-PS-CA (Software Component) IS-PUBLIC SECTOR CONTRACT ACCOUNTING⤷
IS-HER-CM-AD (Application Component) Administration⤷
PMIQ (Package) Campus Management
Basic Data
| Table Category | INTTAB | Structure |
| Structure | PIQ_ISR_HELP |

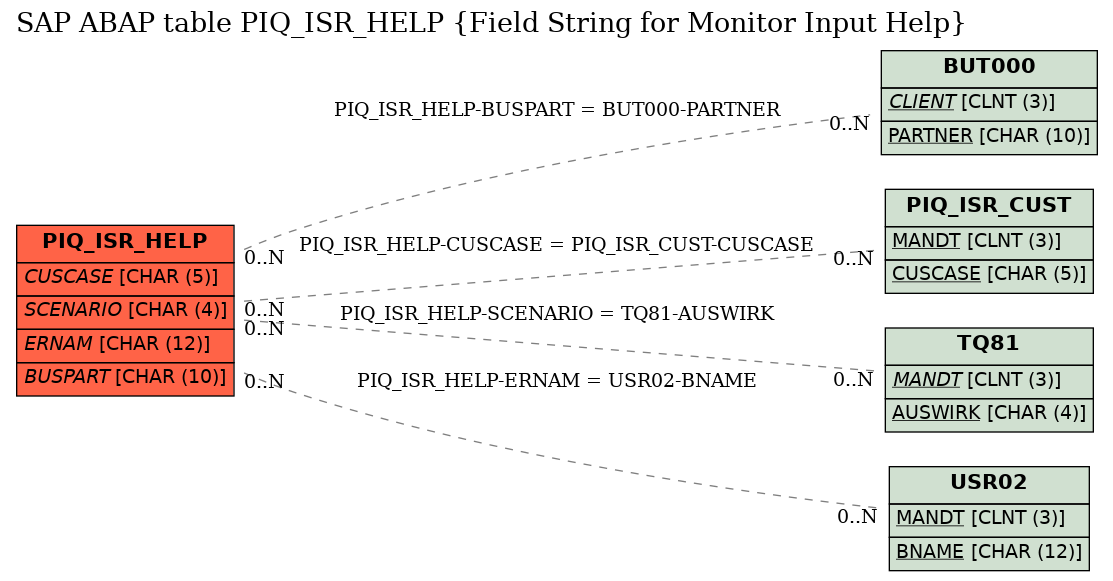

Table Relationship Diagram
|
| Short Description | Field String for Monitor Input Help |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | ||
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  CUSCASE |
PIQ_ISR_CUST_OBJ | CHAR5 | CHAR | 5 | 0 | Scenario Group | PIQ_ISR_CUST | |
| 2 | ERDAT |
ERDAT | DATUM | DATS | 8 | 0 | Date on which the record was created | ||
| 3 | MZEIT |
MZEIT | UHRZT | TIMS | 6 | 0 | Notification Time | ||
| 4 | SCENARIO |
QSCENARIO | QSCENARIO | CHAR | 4 | 0 | Key for a Scenario | TQ81 | |
| 5 | ERNAM |
XUBNAME | XUBNAME | CHAR | 12 | 0 | User Name in User Master Record | USR02 | |
| 6 | BUSPART |
BU_PARTNER | BU_PARTNER | CHAR | 10 | 0 | Business Partner Number | BUT000 |
Foreign Keys
| |
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right |
|---|---|---|---|---|---|---|---|
 |
|
|
|
|
|
|
|
| 1 | PIQ_ISR_HELP | BUSPART |  BUT000 |
PARTNER |
|||
| 2 | PIQ_ISR_HELP | CUSCASE | PIQ_ISR_CUST |
CUSCASE |
|||
| 3 | PIQ_ISR_HELP | ERNAM | USR02 |
BNAME |
|||
| 4 | PIQ_ISR_HELP | SCENARIO | TQ81 |
AUSWIRK |
History
| Last changed by/on | SAP | 20110901 |
| SAP Release Created in | 464 |
