SAP ABAP Table MDG_MDF300C (Names of Master Data Hierarchies)

Hierarchy

☛ MDG_FND (Software Component) MDG Foundation
   ⤷ CA-MDG-AF (Application Component) Application Framework
     ⤷ MDG_MDF5 (Package) Master Data: Hierarchies

Basic Data

Table Category	TRANSP	Transparent table

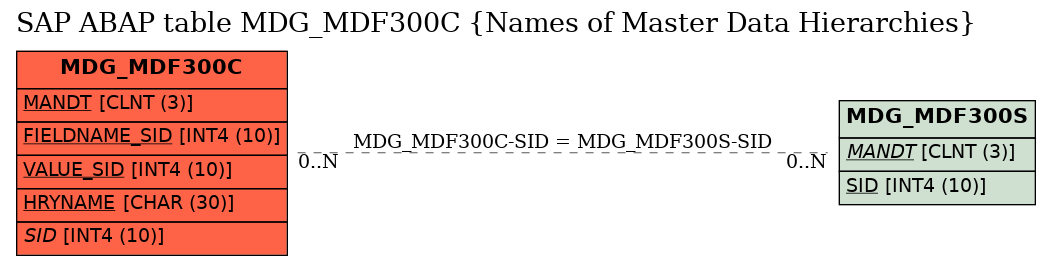

Transparent table	MDG_MDF300C	Table Relationship Diagram
Short Description	Names of Master Data Hierarchies

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	FIELDNAME_SID	☑	MDG_MDF_FIELDNAME_SID	MDG_MDF_SID	INT4	10	0	Master Data: SID of Field Names	*
3	VALUE_SID	☑	MDG_MDF_SID	MDG_MDF_SID	INT4	10	0	Master Data: Surrogate ID	*
4	HRYNAME	☑	MDG_MDF_HRYNAME	MDG_MDF_HRYNAME	CHAR	30	0	Master Data: Name of Hierarchy
5	SID	☐	MDG_MDF_HRYNAME_SID	MDG_MDF_SID	INT4	10	0	Master Data: Surrogate ID for Hierarchy Names	MDG_MDF300S
6	UNIQUE_INDEPFLD	☐	MDG_MDF_FLG	MDG_MDF_FLG	CHAR	1	0	Master Data: General Indicator
7	ONLY_ONE_HRYNAME	☐	MDG_MDF_FLG	MDG_MDF_FLG	CHAR	1	0	Master Data: General Indicator
8	ONLY_ONE_ROOT	☐	MDG_MDF_FLG	MDG_MDF_FLG	CHAR	1	0	Master Data: General Indicator
9	DEPENDENT_HRYNM	☐	MDG_MDF_FLG	MDG_MDF_FLG	CHAR	1	0	Master Data: General Indicator
10	EDGE_VERSION_DEP	☐	MDG_MDF_FLG	MDG_MDF_FLG	CHAR	1	0	Master Data: General Indicator
11	EDGE_TIME_DEP	☐	MDG_MDF_FLG	MDG_MDF_FLG	CHAR	1	0	Master Data: General Indicator

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	MDG_MDF300C	SID	MDG_MDF300S	SID

History

Last changed by/on	SAP	20130604
SAP Release Created in	702
