SAP ABAP Table GRFNDMHIER (Obsolete: DataMart: Hierarchy)

Hierarchy

☛ GRCFND_A (Software Component) GRC Foundation ABAP
   ⤷ GRC (Application Component) Governance, Risk and Compliance
     ⤷ GRFN_REPORTING (Package) Shared PC-RM Reporting

Basic Data

Table Category	TRANSP	Transparent table

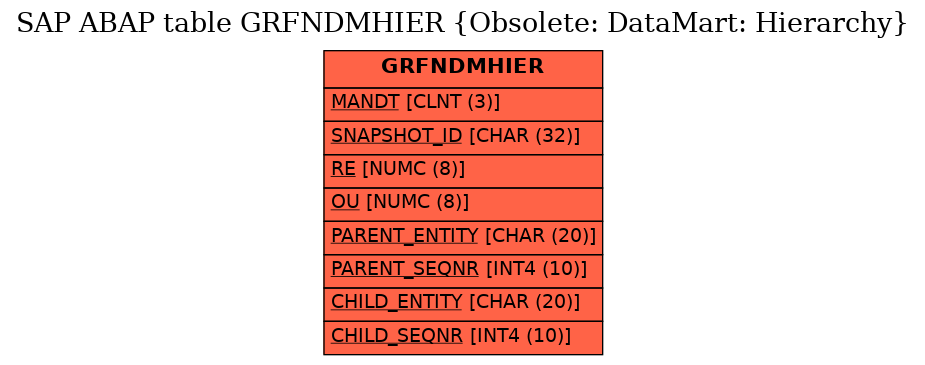

Transparent table	GRFNDMHIER	Table Relationship Diagram
Short Description	Obsolete: DataMart: Hierarchy

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	SNAPSHOT_ID	☑	GRFN_DM_SNAPSHOT_ID	SYSUUID_C	CHAR	32	0	Datamart - Snapshot ID
3	RE	☑	GRFN_REP_REGULATION	NUMC08	NUMC	8	0	Regulation ID
4	OU	☑	GRFN_REP_ORGUNIT_ID	NUMC08	NUMC	8	0	Organization ID
5	PARENT_ENTITY	☑	GRFN_API_ENTITY_ID	GRFN_API_ENTITY_ID	CHAR	20	0	Entity ID	*
6	PARENT_SEQNR	☑	GRFN_OBJECT_SEQNR		INT4	10	0	Object Sequence Number
7	CHILD_ENTITY	☑	GRFN_API_ENTITY_ID	GRFN_API_ENTITY_ID	CHAR	20	0	Entity ID	*
8	CHILD_SEQNR	☑	GRFN_OBJECT_SEQNR		INT4	10	0	Object Sequence Number
9	SEQNR	☐	GRFN_DM_SEQNR	NUMC6	NUMC	6	0	DataMart: Sequence number
10	ATTR_RELA	☐	GRFN_BOOLEAN	GRFN_BOOLEAN	CHAR	1	0	Indicator
11	PARENT_ID	☐	GRFN_API_OBJECT_ID	CHAR50	CHAR	50	0	Object ID
12	CHILD_ID	☐	GRFN_API_OBJECT_ID	CHAR50	CHAR	50	0	Object ID
13	HIER_LEVEL	☐	GRFN_DM_HIER_LEVEL		INT1	3	0	DM Hierarchy Level

History

Last changed by/on	SAP	20141106
SAP Release Created in	300
