SAP ABAP Table ENT5712 (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

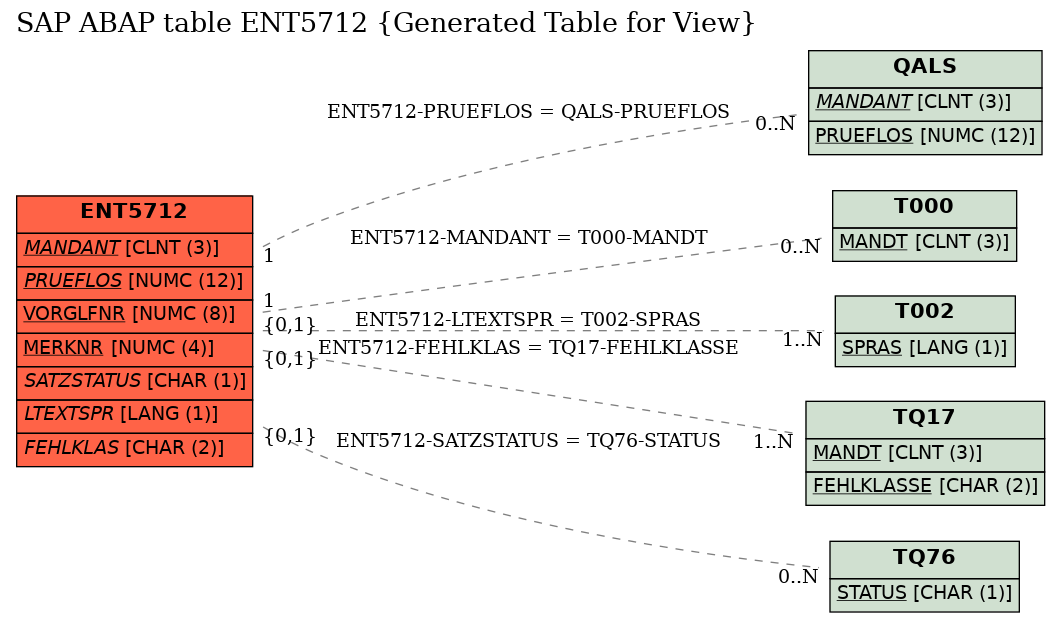

General view structure	ENT5712	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster	QAMR
Delivery Class
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDANT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	PRUEFLOS	☑	QPLOS	QPLOS	NUMC	12	0	Inspection Lot Number	QALS
3	VORGLFNR	☑	QLFNKN	KNTNR	NUMC	8	0	Current Node Number from Order Counter APLZL
4	MERKNR	☑	QMERKNRP	QMERKNRP	NUMC	4	0	Inspection Characteristic Number
5	SATZSTATUS	☐	QBEASTATUS	QSTATUS	CHAR	1	0	Results Record Status	TQ76
6	ERSTELLER	☐	QERSTELLER	QAENDERER	CHAR	12	0	Name of User Who Created the Data Record
7	ATTRIBUT	☐	QATTRIBUT	QATTRIBUT	CHAR	1	0	Attribute of the Results Record (Valid, Invalid,...)
8	ERSTELLDAT	☐	QDATUMERST	DATUM	DATS	8	0	Date on Which the Data Record Was Created
9	AENDERER	☐	QAENDERER	QAENDERER	CHAR	12	0	Name of User who Most Recently Changed the Data Record
10	AENDERDAT	☐	QDATUMAEND	DATUM	DATS	8	0	Date on Which Data Record Was Changed
11	DBEWERTG	☐	QDBEWERTG	QEEBEWERTG	CHAR	1	0	Valuation of the Characteristic for Dynamic Modification
12	MBEWERTG	☐	QMBEWERTG	QEEBEWERTG	CHAR	1	0	Inspection Result Valuation
13	PRUEFER	☐	QPRUEFER	QPRUEFER	CHAR	12	0	Name of the Inspector
14	PRUEFDATUV	☐	QPRUEFDATV	DATUM	DATS	8	0	Inspection Start Date
15	PRUEFDATUB	☐	QPRUEFDATB	DATUM	DATS	8	0	End Date of the Inspection
16	PRUEFZEITV	☐	QPRUEFZTV	QZEIT	TIMS	6	0	Starting Time of the Inspection
17	PRUEFZEITB	☐	QPRUEFZTB	QZEIT	TIMS	6	0	End Time of the Inspection
18	PRUEFBEMKT	☐	QKURZTEXT	QKURZTEXT	CHAR	40	0	Short Text
19	PRLTEXTKZ	☐	QLTEXTKZ	QKZ	CHAR	1	0	Inspection Characteristic Long Text Exists
20	LTEXTSPR	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
21	ISTSTPANZ	☐	QANZSTIPRO	QANZAHL2	INT2	5	0	Number of Partial Samples for the Characteristic
22	ISTSTPUMF	☐	QISTSTPUMF	QANZAHL4	INT4	10	0	Number of Recorded Sample Units
23	ANZFEHLEH	☐	QANZFEHEH4	QANZAHL4	INT4	10	0	Number of Nonconforming Sample Units
24	ANTEILNI	☐	QNIANTEIL	QNOTINI	CHAR	1	0	Not Initialized for Fraction
25	ANTEIL	☐	QANTEIL	QSTATWERT	FLTP	16	16	Estimated Fraction of Nonconforming Sample Units
26	ANZFEHLER	☐	QANZFEHL4	QANZAHL4	INT4	10	0	Number of Defects Found
27	ANZWERTO	☐	QANZWERTO4	QANZAHL4	INT4	10	0	Number of Measured Values Above the Tolerance Range
28	ANZWERTU	☐	QANZWERTU4	QANZAHL4	INT4	10	0	Number of Measured Values Below the Tolerance Range
29	ANZWERTG	☐	QANZWERTG4	QANZAHL4	INT4	10	0	Number of Inspected Sample Units
30	MAXWERTNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
31	MEDIANNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
32	MINWERTNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
33	MITTELWNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
34	VARIANZNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
35	MOMENT3NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
36	MOMENT4NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
37	ANTEILONI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
38	ANTEILUNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
39	MAXWERT	☐	QMAXWERT	QSTATWERT	FLTP	16	16	Maximum Value of the Valid Measured Values
40	MEDIANWERT	☐	QMEDIANWRT	QSTATWERT	FLTP	16	16	Median of Valid Measured Values
41	MINWERT	☐	QMINWERT	QSTATWERT	FLTP	16	16	Minimum Value of the Valid Measured Values
42	MITTELWERT	☐	QMITTELWRT	QSTATWERT	FLTP	16	16	Arithmetic Mean of Valid Measured Values
43	VARIANZ	☐	QVARIANZ	QSTATWERT	FLTP	16	16	Dispersion (Variance) of Valid Measured Values
44	MOMENT3	☐	QMOMENT3	QSTATWERT	FLTP	16	16	Third Central Moment of Valid Measured Values
45	MOMENT4	☐	QMOMENT4	QSTATWERT	FLTP	16	16	Fourth Central Moment of Valid Measured Values
46	ANTEILO	☐	QANTEILO	QSTATWERT	FLTP	16	16	Estimated Fraction Above the Tolerance Range
47	ANTEILU	☐	QANTEILU	QSTATWERT	FLTP	16	16	Estimated Fraction Below the Tolerance Range
48	GUELSTPANZ	☐	QGUELSTPAN	QANZAHL2	INT2	5	0	Number of Valid Partial Samples
49	IVARIANZNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
50	IVARIANZ	☐	QIVARIANZ	QSTATWERT	FLTP	16	16	Internal Dispersion of Valid Measured Values
51	FEHLKLAS	☐	QFEHLKLAS	QFEHLKLAS	CHAR	2	0	Defect class	TQ17
52	SENDEFLAG	☐	QSENDEFLAG	QSENDEFLAG	CHAR	1	0	Characteristic Result Confirmation from Control Station
53	MASCHINE	☐	QMASCHINE	QEQUNR	CHAR	18	0	General Information
54	POSITION	☐	QPRPOS	QPRPOS	NUMC	4	0	Test Position

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	ENT5712	FEHLKLAS	TQ17	FEHLKLASSE	REF	C	N
2	ENT5712	LTEXTSPR	T002	SPRAS	REF	C	N
3	ENT5712	MANDANT	T000	MANDT	KEY	1	CN
4	ENT5712	PRUEFLOS	QALS	PRUEFLOS	KEY	1	CN
5	ENT5712	SATZSTATUS	TQ76	STATUS	REF	C	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
